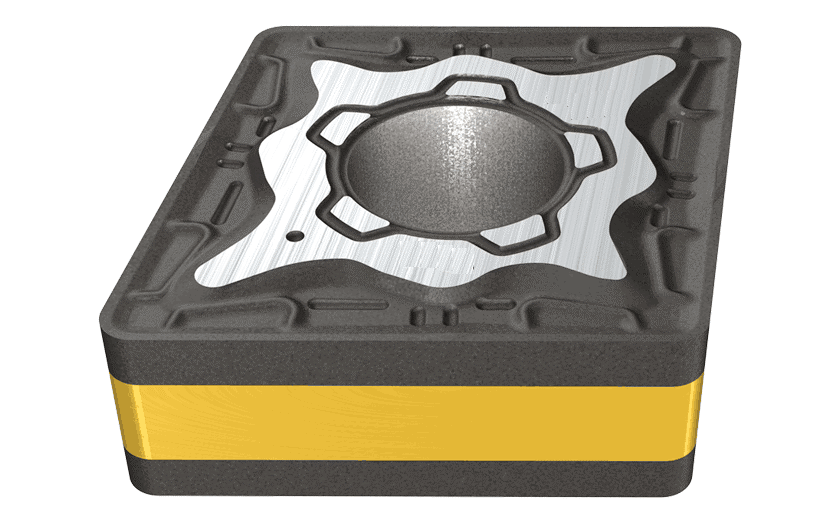

Iscar 5566681 CNMG-432-M3P IC8250 Carb Insert

Product Description

The Iscar CNMG-432-M3P IC8250 carb insert is designed for efficient metal cutting. This insert is ideal for use in finishing and roughing applications on stainless steel and steel materials. Manufactured by Iscar, the MPN is 5566681. It features a negative clearance angle and a corner radius of 0.0310 inches, enhancing its cutting performance.

• Insert style is CNMG with 80-degree diamond shape.
• Made from durable carbide material.
• Insert thickness is 0.1870 inches.

Product Highlights

This Iscar insert provides long-lasting performance for various machining tasks, ensuring precise cutting.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: CNMG
• Insert Shape: 80-degree Diamond

Technical Specifications

• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0310 inches
• Insert Material: Carbide
• Work Material: Stainless Steel + Steel
• Insert Coating: TiCN + Al2O3 + TiN
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.5080 inches
• Min Depth of Cut: 0.0200 inches
• Max Depth of Cut: 0.2170 inches
• Min Feed: 0.0059 inches
• Max Feed: 0.0197 inches
