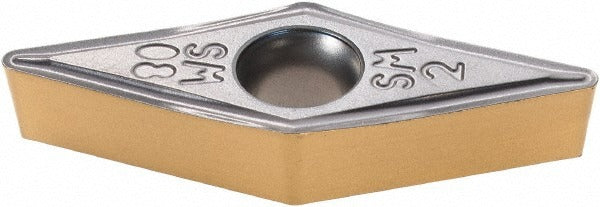

Iscar 5550499 VCMT332SM IC807 Turning Insert 3/8 in

Product Description

The ISCAR 5550499 is a VCMT332SM solid carbide turning insert with an IC807 manufacturer grade and a PVD-applied TiAlN coating. It features a 35-degree diamond (V) insert shape with a positive rake geometry, a 7-degree relief angle (clearance code C), and an SM chip breaker design. The inscribed circle measures 3/8 inch (0.375 inches), and the corner radius is 1/32 inch (0.0313 inches). Insert length is 0.6535 inches (16.60 mm), thickness is 3/16 inch (0.1875 inches), and maximum depth of cut is 0.0984 inches (2.50 mm). This insert is held by screw-clamping and conforms to ISO 13399 standards. It is part of the Isoturn series.

This insert is suited for turning operations on a range of workpiece materials, covering ISO material groups H, K, M, P, and S. That includes steels, stainless steels, cast irons, hardened materials, and high-temperature alloys. The TiAlN PVD coating provides thermal resistance and wear resistance for both dry and coolant-assisted cutting. The SM chip breaker geometry handles light-to-medium finishing passes. This insert is specified and installed by CNC machinists and tooling technicians in production turning and job-shop environments on lathes and turning centers.

Key Features

• IC807 submicron carbide grade with PVD TiAlN coating for elevated wear resistance
• 35-degree diamond (V) insert shape with positive rake for reduced cutting forces
• SM chip breaker optimized for light-to-medium finishing cuts
• Screw-clamp holding method for secure, repeatable indexing
• Conforms to ISO 13399 for standardized tooling data compatibility
• Covers ISO material groups H, K, M, P, and S for broad application range

Compatibility

Designed as an OEM-style replacement turning insert for VCMT-style screw-clamp turning toolholders compatible with the Isoturn series geometry.

Installation Notes

Installation is performed by tooling technicians or CNC machinists. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key as specified by the toolholder manufacturer to secure the clamping screw to the correct torque. Inspect the toolholder pocket and seating surface for wear or debris before seating the new insert.
