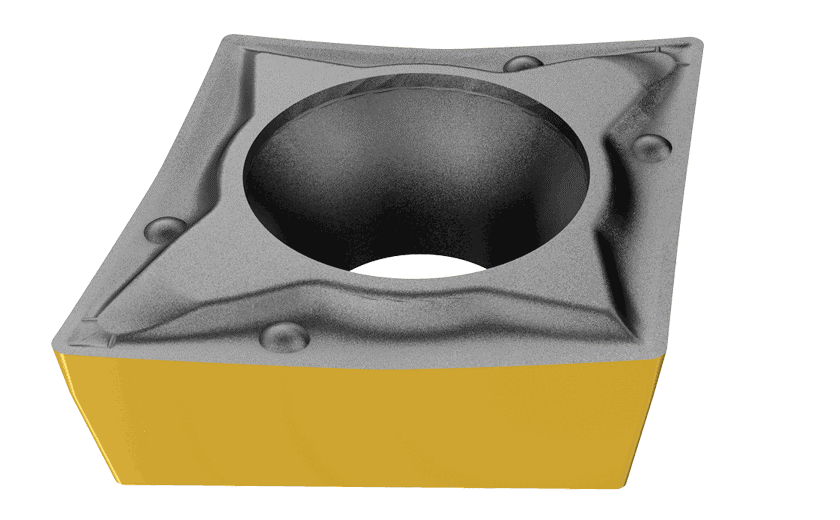

Iscar 5550210 CCMT-2-1-PF IC807 Insert

Product Description

The Iscar 5550210 CCMT-2-1-PF IC807 insert is designed for precision machining tasks. This insert type is ideal for turning applications on various materials. It features a diamond shape and positive clearance angle, enhancing performance during machining.

• Insert style: CCMT
• Material: Carbide
• Coating: TiAlN+TiN

Product Highlights

This insert is suitable for finishing and semi-roughing operations. It is compatible with stainless steel, hardened materials, and cast iron.

Product Information

Standard Information

• Brand: Iscar
• Insert Shape: 80° Diamond

Technical Specifications

• Size: 0.2500
• Corner Radius: 0.0160
• Insert Thickness: 0.0940
• Insert Edge Length: 0.2480
• Min Depth of Cut: 0.0160
• Max Depth of Cut: 0.0980
• Min Feed: 0.0016
• Max Feed: 0.0118
