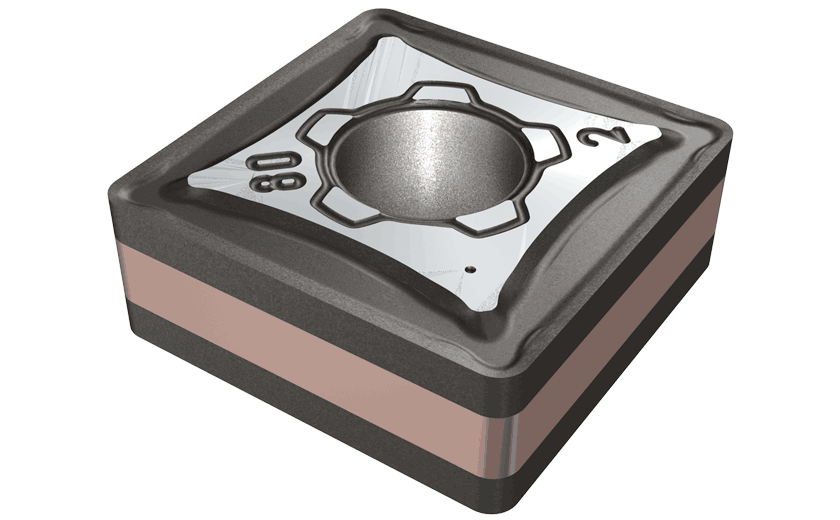

Iscar 5510188 SNMG 432-M3M IC6025 INSERT

Product Description

The Iscar 5510188 SNMG 432-M3M IC6025 INSERT is designed for precise machining applications. This carbide insert is specifically crafted for stainless steel work materials. It offers a variety of cutting depths and feed rates, making it suitable for semi-finishing and roughing processes.

• Insert Style: SNMG
• Insert Shape: 90° Square
• Material: Carbide

Product Highlights

This insert is effective for tasks requiring durability and accuracy, featuring a negative clearance angle and advanced coating. Ideal for trade professionals looking to optimize their machining outcomes.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: SNMG

Technical Specifications

• Insert Shape: 90° Square
• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0310 inches
• Insert Material: Carbide
• Work Material: Stainless Steel
• Machining Application: Semi Finishing-Roughing
• Insert Coating: TiCN+Al2O3+TiN
• Insert Thickness: 0.1870 inches
• Min Depth of Cut: 0.0200 inches
• Max Depth of Cut: 0.1970 inches
• Min Feed: 0.0059 inches
• Max Feed: 0.0197 inches
