Iscar 5509605 Carbide Replaceable Tip Drill 0.594 in

Product Description

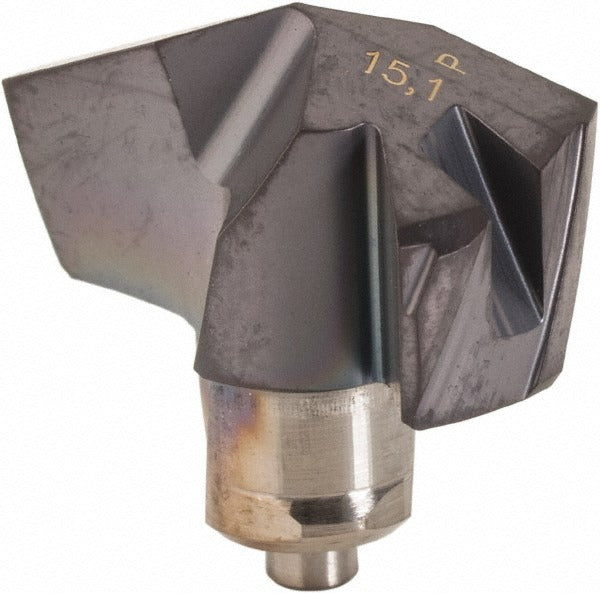

The ISCAR 5509605 is a solid carbide replaceable tip drill insert in the ICP-2M series, designed for precision drilling in demanding metalworking applications. The tip carries a TiAlN coating applied via PVD process, which provides thermal resistance and wear protection during high-speed cutting. Key dimensional specs include a cutting diameter of 0.594 inches (19/32 inch), an included point angle of 140 degrees, and an overall projection height of 0.344 inches. The double-margin, web-thinned geometry and slow spiral flute design contribute to stable entry and chip evacuation. This insert is installed and serviced by machining professionals and tool-room technicians.

The ICP0594-2M tip is engineered for drilling into steel as its primary workpiece material, with secondary capability across stainless steel, cast iron, super-alloys, titanium, and hard materials. The slow spiral flute configuration suits materials that require controlled chip flow. The double-margin style provides enhanced hole straightness and surface finish in through-hole and blind-hole drilling operations. This tip is suited for use in CNC machining centers and drill presses where replaceable-tip drill systems are employed to reduce tooling changeover time.

Key Features

• Solid carbide IC908 submicron-grade tip for wear resistance in steel and hard materials
• TiAlN PVD coating for thermal and oxidation resistance at elevated cutting temperatures
• 140-degree included point angle with web-thinned geometry for reduced thrust and cleaner entry
• Double-margin design for improved hole straightness and bore finish
• Slow spiral flute promotes controlled chip evacuation in tough workpiece materials
• Conforms to ISO 13399 tooling data standards for system integration

Compatibility

Designed as an OEM-style replaceable tip for ICP-2M series drill bodies requiring a 0.594-inch diameter tip with an insert seat size of 15, per ISO number ICP 151-2M.

Installation Notes

Replaceable carbide tip inserts should be installed and torqued using the tool manufacturer's specified driver to avoid seat damage. Power down and de-energize the machine spindle before tip removal or installation. Inspect the drill body seat for chips, debris, or wear before seating a new tip. Consult the machine tool manufacturer's documentation and applicable shop safety standards when handling carbide tooling.
