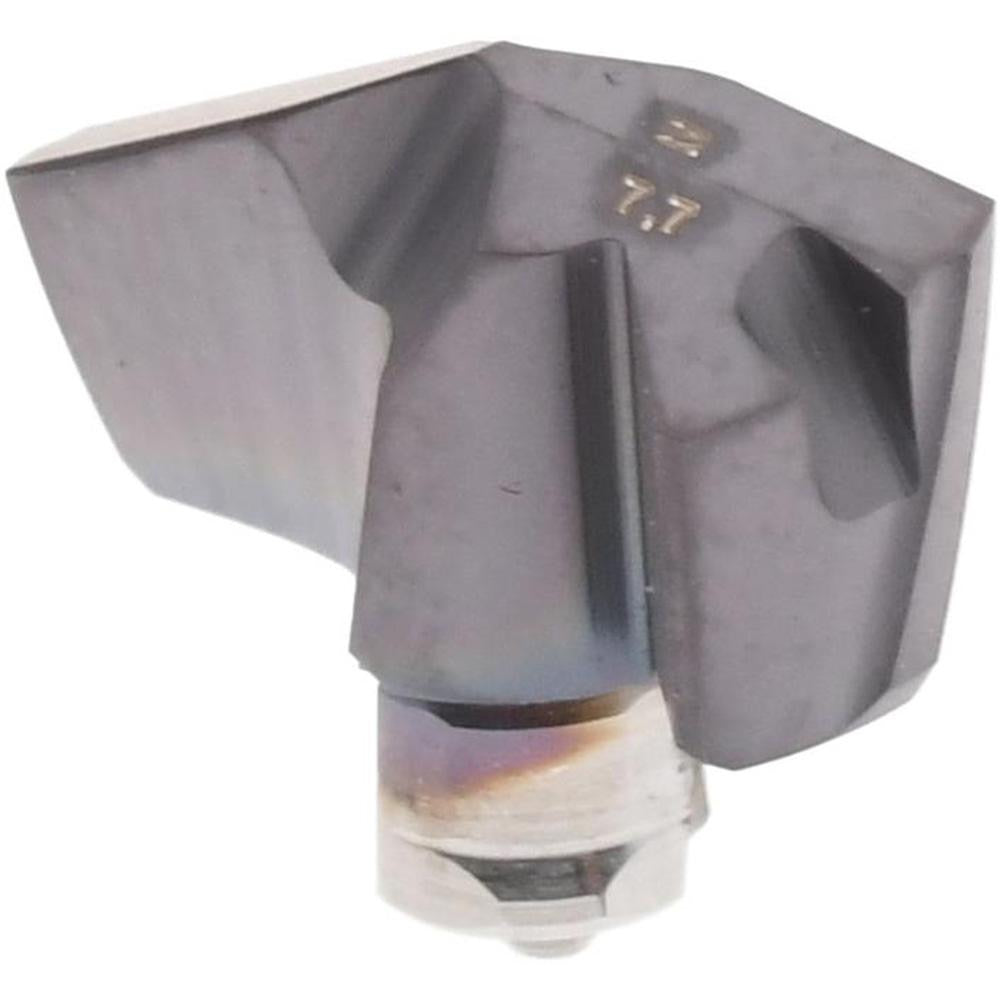

Iscar 5509470 Replaceable Drill Tip 0.303 in Carbide Tialn

Product Description

The ISCAR 5509470 is a solid carbide replaceable drill tip designed for high-performance drilling in demanding materials. Part of the ICM series, this tip features a 0.303-inch cutting diameter and a 140-degree drill point angle with a thinned web point geometry. The TiAlN coating is applied via PVD process and is classified under manufacturer grade IC908 with a submicron material grade. It is installed by machining professionals and toolroom technicians working with precision drilling applications where insert-style tooling systems are used. The T-Land style and slow spiral flute configuration support controlled chip evacuation and edge stability during cutting operations.

This drill tip is engineered for primary use in stainless steel, superalloys, and titanium workpieces, covering ISO material codes M and S. It also performs in secondary applications involving steel, cast iron, and hard materials (ISO codes P, K, and H). The insert seat size is 7, and the tip mounts via a twist-style holding method. Typical applications include through-hole and blind-hole drilling in aerospace, medical, and energy sector components where tool life and dimensional consistency are critical.

Key Features

• Solid carbide construction with submicron grain material grade for edge toughness
• TiAlN PVD coating for heat resistance and extended tool life in difficult materials
• 140-degree included angle with thinned web point for reduced thrust and accurate entry
• Slow spiral, T-Land geometry supports chip control in gummy or abrasive workpieces
• Two-flute design with ISO 13399 compliance for standardized tooling documentation
• Replaceable tip format reduces tooling cost versus solid-body drills

Compatibility

Designed for use with ICM series drill bodies accepting insert seat size 7 and twist-style tip retention, per ISO number ICM 077. Consult the ISCAR ICM series body compatibility chart to confirm proper body-to-tip pairing before installation.

Installation Notes
