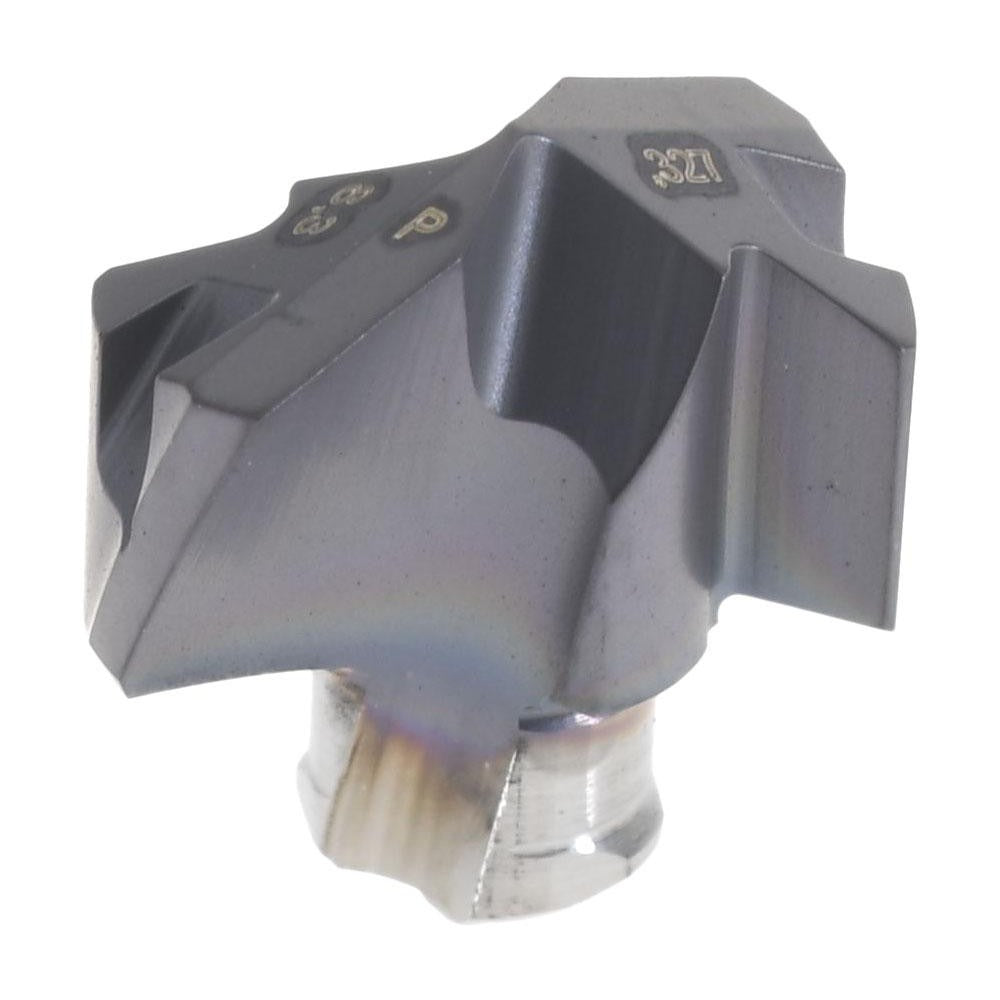

Iscar 5508310 Carbide Replaceable Tip Drill 8.00mm 140deg

Product Description

The ISCAR 5508310 is a solid carbide replaceable tip drill insert in the ICP series, designed for use with compatible modular drill bodies in metalcutting applications. This insert features a TiAlN PVD coating applied over a submicron carbide substrate in manufacturer grade IC908, delivering wear resistance and thermal stability during high-speed drilling. The 140-degree drill point angle and helical flute geometry promote chip evacuation and clean entry in ferrous workpiece materials. The insert is clamped into the drill body seat and is sized for an 8mm seat. It is installed by tool and die technicians, machinists, and CNC operators working in production and job-shop environments.

This replaceable tip is suited for hole-making operations in steel as its primary workpiece material. Secondary workpiece materials include stainless steel, cast iron, superalloys, titanium, and hard materials. The insert also supports chamfering and is applicable in gundrilling setups where the ICP-style tip geometry is specified. It is commonly used in horizontal and vertical machining centers and CNC turning centers equipped with driven tooling.

Key Features

• Solid carbide construction in submicron grade IC908 for wear resistance in ferrous cutting
• TiAlN coating applied via PVD process for thermal stability and extended tool life
• 140-degree included angle with standard point type for accurate drill entry
• Helical flute with web-thinned geometry for improved chip flow and reduced thrust
• 2-flute configuration with regular spiral, insert seat size 8
• Meets ISO 13399 tooling data standards for CAM and tool management integration

Compatibility

Designed as an OEM-style replaceable tip insert for ICP-series modular drill bodies requiring an 8mm insert seat size, conforming to ISO number ICP 083.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. The drill body should be removed from the spindle or turret and all machine motion disabled before replacing the tip. Use the appropriate clamp-style torque tool as specified by the drill body manufacturer for the ICP seat. Do not exceed the cutting parameters or material pairings published in the applicable ISCAR ICP series tooling guide.
