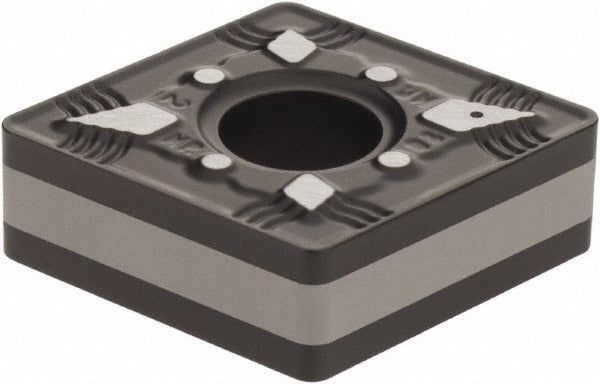

Iscar 5507735 CNMG432NR IC5010 Turning Insert Isoturn

Product Description

The ISCAR 5507735 is a solid carbide turning insert designed for use in CNC and conventional lathe operations. Manufactured to the CNMG style with an 80-degree diamond shape, this insert carries ISCAR grade IC5010 and features a CVD-applied multilayer coating of TiCN, Al2O3, and TiN. The coating stack provides wear resistance and thermal stability during continuous and interrupted cuts. The insert measures 12.9 mm (0.508 inches) in length with a 0.5 inch inscribed circle and a 1/32 inch (0.031 inch) corner radius. It is held in place by clamp or pin, and the NR chip breaker geometry supports controlled chip evacuation across a range of feed rates. CNC machinists and toolroom operators install this insert in compatible CNMG toolholders.

This insert is suited for turning applications on cast iron and similar ISO K workpiece materials, including gray cast iron, ductile iron, and hardened ferrous materials. The Isoturn series designation places it in ISCAR's general turning line. Typical applications include external diameter turning, facing, and light profiling on production and job-shop lathes. The IC5010 grade with CVD coating is optimized for moderate to high cutting speeds on K-group materials. Maximum depth of cut is 4.50 mm (0.177 inches).

Key Features

• IC5010 solid carbide grade with CVD-applied TiCN, Al2O3, and TiN multilayer coating
• CNMG insert style with 80-degree diamond shape and clearance code N
• NR chip breaker geometry for controlled chip management during turning
• 1/32 inch (0.031 inch) corner radius for general-purpose finishing and semi-finishing
• Clamp and pin holding method for secure seating in compatible toolholders
• Compliant with ISO 13399 cutting tool data representation standards

Compatibility

Designed as an OEM-style replacement or direct-fit insert for CNMG 432-style toolholders used in external turning of ISO K group workpiece materials. Confirm toolholder insert pocket specifications before installation.

Installation Notes

Turning inserts in the CNMG family are installed by qualified machinists or CNC tooling technicians. Power down and lock out the machine before changing inserts. Seat the insert fully in the toolholder pocket and torque the clamping screw to the toolholder manufacturer's specified value using a calibrated torque wrench. Inspect the insert seat and clamp for wear or debris before installation to ensure proper contact and prevent premature edge failure.
