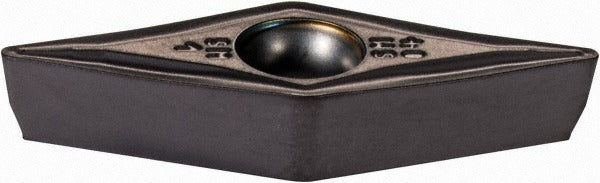

Iscar 5507352 Turning Insert VCMT221SM IC907 Carbide

Product Description

The ISCAR 5507352 is a solid carbide turning insert in the VCMT 221-SM geometry, manufactured under the IC907 grade within the Isoturn series. It features a PVD-applied dual coating of TiN and TiAlN, which supports hardness and heat resistance during interrupted and continuous turning operations. The insert measures 11.1 mm (0.437 inches) in length with a 0.25 inch inscribed circle and a 0.016 inch corner radius. The 35-degree diamond shape with positive rake and a 7-degree relief angle makes it suited for moderate to light material removal. Licensed machinists and CNC lathe operators install this insert in standard screw-held toolholders.

The VCMT 221-SM geometry targets a broad range of workpiece materials, covering ISO material codes H, K, M, N, P, and S, which correspond to hardened materials, cast iron, stainless steel, non-ferrous alloys, steel, and heat-resistant superalloys respectively. The SM chip breaker design is optimized for finishing and semi-finishing passes. The insert also supports boring applications, making it a multi-use option on CNC lathes and turning centers in both job shop and production environments. Maximum depth of cut is 3.00 mm (0.118 inches).

Key Features

• IC907 solid carbide grade with PVD TiN and TiAlN dual coating for wear and heat resistance
• 35-degree diamond (V) insert shape with positive rake for reduced cutting forces
• 7-degree relief angle (clearance code C) for edge clearance during turning
• SM chip breaker suitable for finishing and semi-finishing passes
• Compatible with screw-style insert clamping on VCMT-style toolholders
• Multi-use rating includes both external turning and boring applications
• Meets ISO 13399 standards for cutting tool data representation

Compatibility

Designed as an OEM-style replacement or direct-fit insert for VCMT-style screw-held turning toolholders accepting a 221 insert size. Verify toolholder pocket geometry and insert size code 221 before installation.

Installation Notes

This insert is installed by licensed machinists or CNC operators. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torx or hex key for the clamping screw and follow the toolholder manufacturer's seating torque guidance. Do not exceed the maximum depth of cut rating for the insert geometry, and inspect the insert seat and screw for wear during each change.
