Iscar 5507289 WNMG-3-2-WG IC-9250 INSERT

Product Description

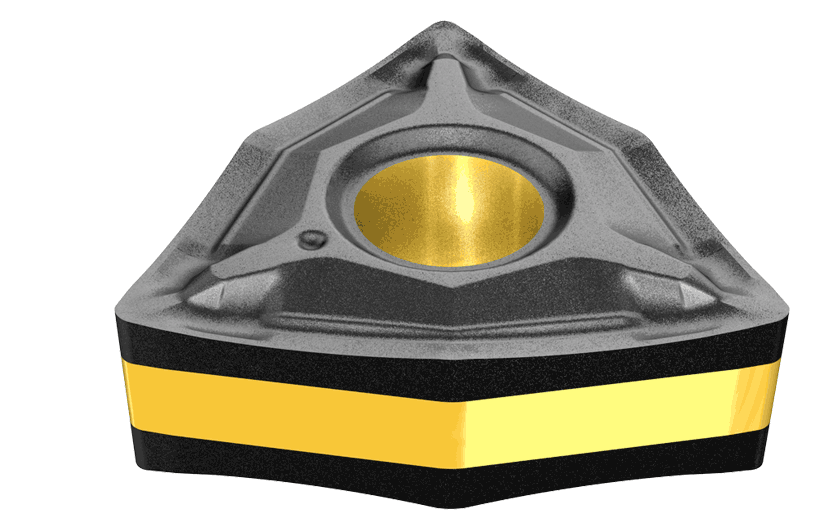

The Iscar WNMG-3-2-WG IC-9250 insert is a precision cutting tool designed for various machining applications. This tungsten carbide insert features a negative clearance angle and a trigon shape, making it suitable for finishing and roughing operations on stainless steel and similar materials.

• Insert Style: WNMG
• Insert Shape: 80-degree Trigon
• Insert Material: Carbide

Product Highlights

Utilize the Iscar WNMG-3-2-WG IC-9250 for effective cutting and shaping. Its precise engineering ensures durability and performance across different machining tasks.

Product Information

Standard Information

• Brand: Iscar
• Insert Size: 0.3750 inches

Technical Specifications

• Insert Coating: TiCN + Al2O3 + TiN
• Insert Thickness: 0.1560 inches
• Min Depth of Cut: 0.0240 inches
• Max Depth of Cut: 0.1380 inches
• Min Feed: 0.0039 inches
• Max Feed: 0.0197 inches
• Corner Radius: 0.0310 inches
• Insert Edge Length: 0.2570 inches
