Iscar 5507285 CNMG431 Tf IC9250 Turning Insert Carbide

Product Description

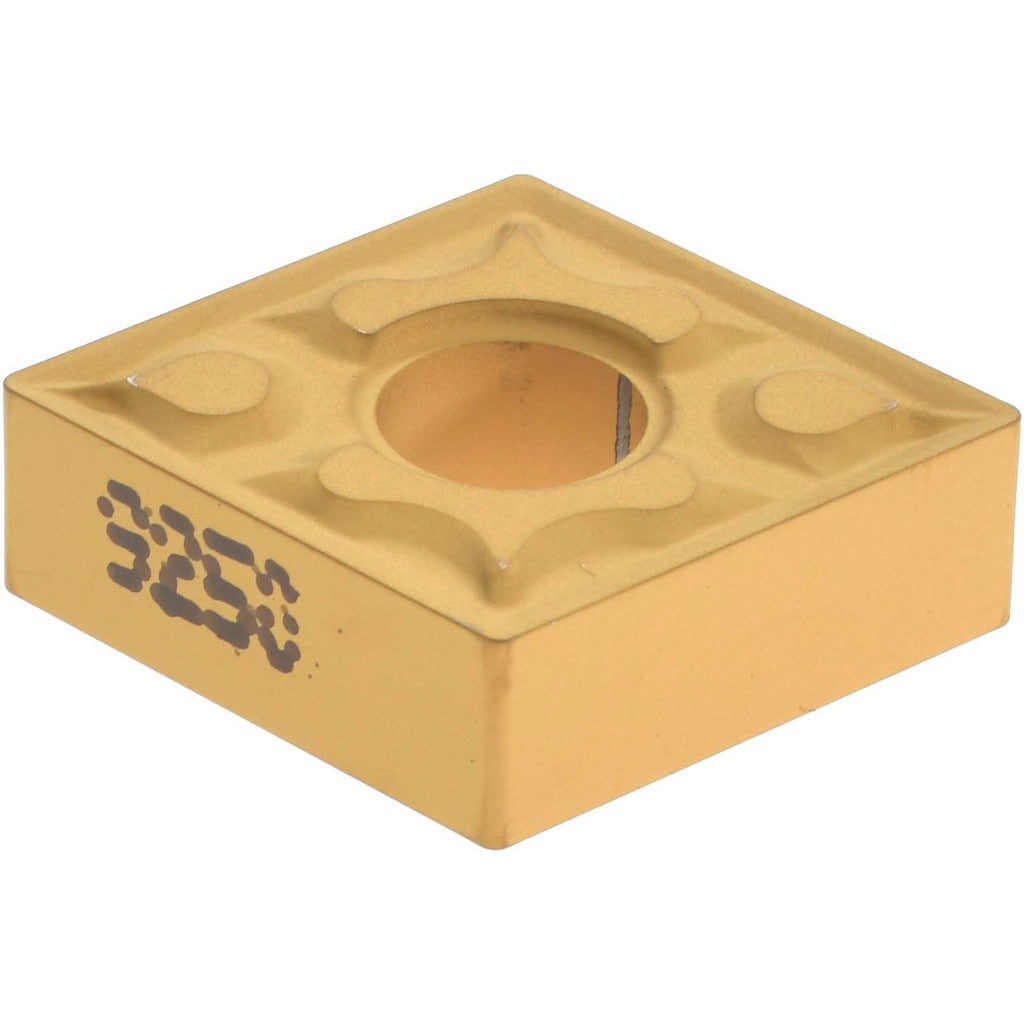

The ISCAR 5507285 is a CNMG431 TF geometry turning insert in the IC9250 grade, designed for external and internal turning operations on CNC lathes and turning centers. This solid carbide insert features a CVD-applied multilayer coating of TiCN, Al2O3, and TiN, which delivers a hard wear-resistant surface with a tough substrate underneath. The 80-degree diamond (rhombic) shape provides two usable cutting edges per face. With a 0.5-inch inscribed circle, a 3/16-inch thickness, and a 1/64-inch corner radius, this insert suits medium to roughing depth-of-cut applications up to 4.00 mm. Licensed machinists and CNC operators install this insert in standard CNMG-style toolholders using clamp or pin retention.

The TF chip breaker geometry on the ISCAR 5507285 is optimized for roughing and medium machining passes. The IC9250 grade targets steel (P), stainless steel (M), and hardened materials (H), offering a range from high wear-resistance to high toughness depending on cutting conditions. It is well suited for production turning environments where consistent chip control and extended tool life across varying feed rates and depths of cut are required. The negative side clearance and positive rake design balance cutting force and edge stability in demanding turning applications.

Key Features

• CVD multilayer coating: TiCN, Al2O3, and TiN for wear resistance across steel and stainless workpiece materials
• IC9250 grade covers P (steel), M (stainless steel), and H (hardened materials) application groups
• TF chip breaker geometry rated for roughing and medium machining operations
• 80-degree diamond insert shape (ANSI code C) with negative clearance and positive rake
• Maximum depth of cut of 4.00 mm (0.1575 inches)
• Compatible with clamp and pin insert holding methods in standard CNMG toolholders
• Compliant with ISO 13399 cutting tool data representation standards

Compatibility

Designed as an OEM-style replacement and standard-fit insert for CNMG431 toolholders using clamp or pin retention. ANSI insert code CNMG431; ISO insert code CNMG120404. Material grade classifications C5, C6, and C7.

Installation Notes
