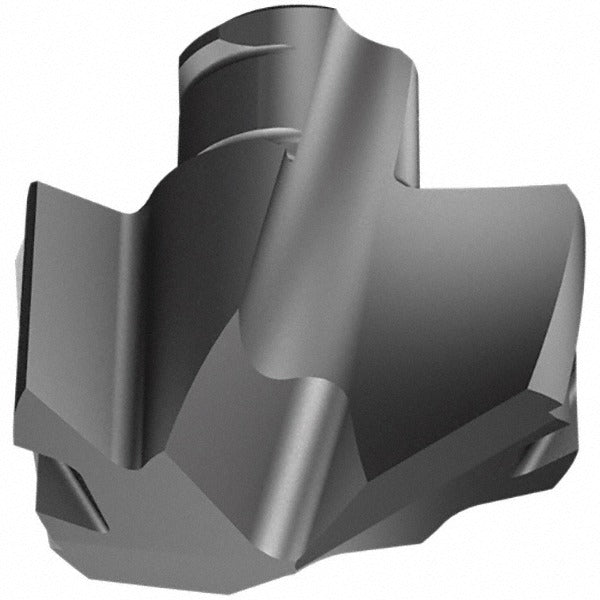

Iscar 5506676 Carbide Replaceable Tip Drill IC908 Icp

Product Description

The ISCAR 5506676 is a solid carbide replaceable tip drill in the ICP series, designed for high-productivity hole-making in metalworking applications. Manufactured to IC908 grade using a submicron carbide substrate, the tip features a TiAlN PVD coating and a honed cutting edge geometry for improved wear resistance and edge stability. The 140-degree drill point is web-thinned to reduce thrust force and improve chip evacuation at entry. With a cutting diameter of 1.1810 inches (30mm) and a functional length of 0.5040 inches, this replaceable tip seats into compatible ICP series drill bodies at the 30mm insert seat size. Installation is performed by qualified machinists or toolroom technicians.

This drill tip is suited for drilling operations in steel as its primary workpiece material. Secondary materials include stainless steel, cast iron, super-alloys, titanium, and hard materials, making it a broadly capable tip across common production and job-shop environments. The slow spiral flute geometry and twist-held insert seat are matched to moderate feed rates in interrupted or continuous cuts. The tip conforms to ISO 13399 tooling data standards, supporting integration with tool management and CAM systems.

Key Features

• IC908 submicron carbide grade with TiAlN PVD coating for extended tool life in steel and stainless steel
• 140-degree web-thinned point reduces entry thrust and improves chip flow
• Honed cutting edge geometry provides consistent edge prep for stable cutting action
• Slow spiral flute design suited to moderate feed drilling in tough materials
• ISO 13399 compliant for use with digital tool management and CAM integration
• Replaceable tip design reduces tooling cost by allowing tip swap without replacing the full drill body

Compatibility

Designed for use with ICP series replaceable tip drill bodies at the 30mm insert seat size (ISO number ICP 300). Specific compatible drill body part numbers were not provided in the product data — verify body compatibility using the ICP series seat size specification before ordering.

Installation Notes

Replaceable tip drills should be installed and torqued per the drill body manufacturer's documented procedure using the specified torque wrench or key. Ensure the drill body seat is clean and free of chips or debris before seating the tip. Always power down and lock out the machine spindle before changing tips. Coolant-through capability is not supported on this tip; confirm coolant delivery method matches the application setup before use.
