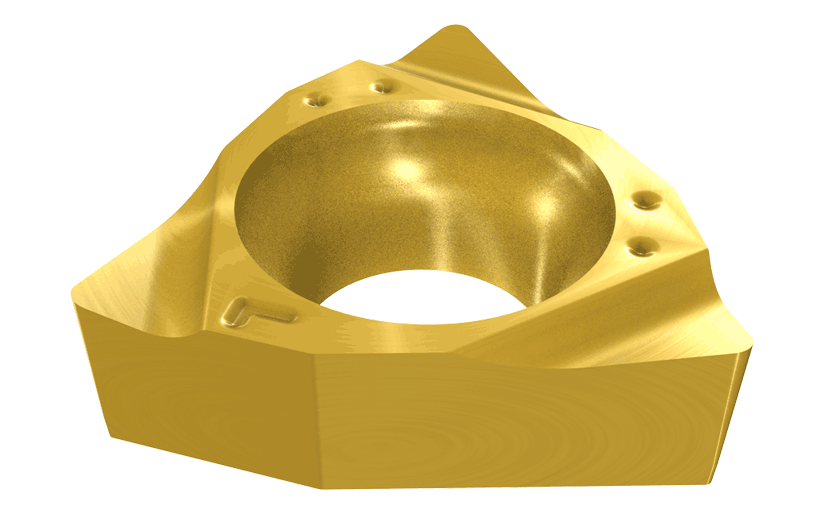

Iscar 5506174 WBMT-52.004L IC908 Trigon Carb Insert R.004

Product Description

The Iscar brand offers the 5506174 WBMT-52.004L IC908 Trigon Carb Insert. This insert is designed for efficient machining with a specific profile and material suitable for various metals.

• Insert Shape: 80° Trigon
• Material: Carbide
• Suitable for Semi Finishing and Roughing

Product Highlights

This insert features a corner radius of 0.0040 inches and is designed for stainless steel, hardened materials, and cast iron. It is effective in semi-finishing and roughing applications. The TiAlN coating enhances durability and performance.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: WBMT

Technical Specifications

• Insert Shape: 80° Trigon
• Clearance Angle: 5° Positive
• Size: 0.1560 inches
• Corner Radius: 0.0040 inches
• Insert Material: Carbide
• Work Material: Stainless Steel, Steel, Hi Temp, Hardened Materials, Cast Iron
• Machining Application: Semi Finishing, Semi Roughing
• Insert Coating: TiAlN
• Insert Thickness: 0.0630 inches
• Insert Edge Length: 0.0860 inches
• Min Depth of Cut: 0.0160 inches
• Max Depth of Cut: 0.0790 inches
• Min Feed: 0.0039 inches
• Max Feed: 0.0059 inches
