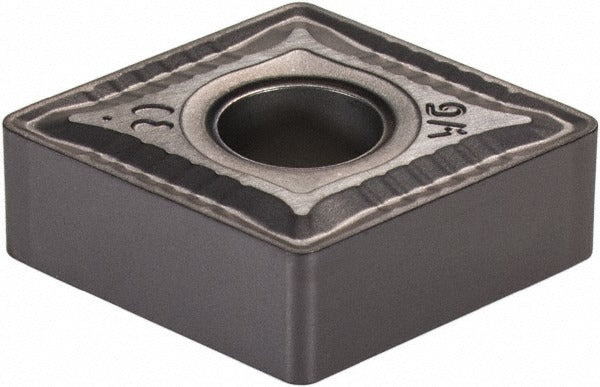

Iscar 5505858 Cnmg 432-WG IC907 Turning Insert

Product Description

The ISCAR 5505858 is a solid carbide turning insert in the CNMG 432-WG geometry, part of the Isoturn series. It carries a dual PVD coating of TiN and TiAlN under the IC907 manufacturer grade, which is suited for a wide range of workpiece materials including steel, stainless, cast iron, non-ferrous, heat-resistant alloys, and hardened materials. The insert features an 80-degree diamond shape, a 0.5-inch inscribed circle, a 1/32-inch corner radius, and a WG wiper-edge chip breaker. Licensed machinists and CNC operators install this insert in turning centers and boring applications. Insert length is 12.9 mm (0.508 inches) and insert thickness is 3/16 inch (0.187 inches).

The ISCAR 5505858 is intended for external turning and boring operations on a broad spectrum of materials. Its universal material compatibility code covers ISO material groups H, K, M, N, P, and S, making it applicable in production shops running mixed-material jobs. The WG chip breaker geometry targets medium to finishing passes, and the maximum depth of cut is 3.51 mm (0.138 inches). It is a multi-use insert suitable for general turning and boring operations in both CNC and manual lathe setups.

Key Features

• IC907 grade with PVD-applied TiN and TiAlN dual coating for extended tool life across multiple workpiece materials
• WG wiper-edge chip breaker geometry for improved surface finish and chip control
• 80-degree diamond insert shape (CNMG) provides two usable cutting edges per insert
• Maximum depth of cut: 3.51 mm (0.138 inches) — suited for medium and finishing passes
• Clamp and pin insert holding method for secure seating under cutting loads
• Meets ISO 13399 standard; Iso Code CNMG 432-WG
• Multi-use rated for both turning and boring operations

Compatibility

Designed as an OEM-style replacement turning insert for Isoturn series toolholders accepting CNMG 432 geometry inserts with clamp and pin holding. Compatible with workpiece material ISO groups H, K, M, N, P, and S as specified by ISCAR.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torque wrench and clamp hardware specified by the toolholder manufacturer — do not hand-tighten clamping screws without verification. Inspect the insert pocket and seating surface for chips or debris before seating the insert to ensure proper contact and dimensional accuracy.
