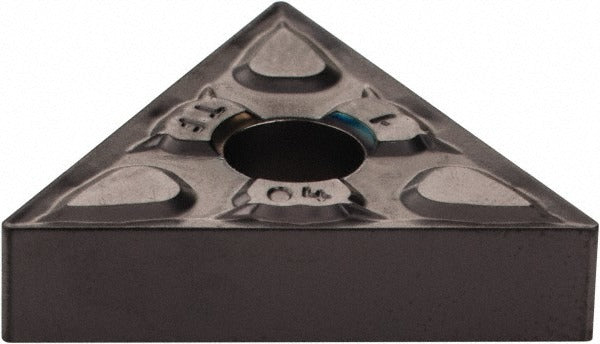

Iscar 5505126 Tnmg 431-TF IC907 Turning Insert Carbide

Product Description

The ISCAR 5505126 is a solid carbide turning insert in the TNMG 431-TF geometry, coated with TiAlN and TiN via a PVD process under the IC907 manufacturer grade. Part of the Isoturn series, this triangular insert features a 60-degree included angle, a positive rake, and a neutral 0-degree relief angle. It measures 22 millimeters (0.866 inches) in length with a 1/2-inch inscribed circle and a 1/64-inch corner radius. The TF chip breaker geometry controls chip flow across a wide range of turning applications. Licensed machinists and CNC lathe operators install this insert in compatible toolholders for external and internal turning operations.

This insert is suited for turning operations across a broad range of workpiece materials, including steel, stainless steel, high-temperature alloys, and cast iron, as indicated by primary workpiece material codes H, K, M, N, P, and S. The IC907 grade and PVD-applied TiAlN and TiN coating combination supports general-purpose turning where wear resistance and edge stability are priorities. Typical applications include finish to semi-finish turning in production CNC environments. The TF chip breaker accommodates varying feed rates and depths, with a maximum depth of cut rated at 3.50 millimeters (0.138 inches).

Key Features

• IC907 grade solid carbide with PVD-applied TiAlN and TiN dual coating for wear resistance
• TNMG triangular insert shape with 60-degree included angle and positive rake geometry
• TF chip breaker for controlled chip formation across varied feed and depth conditions
• 1/2-inch inscribed circle with 1/64-inch corner radius for precise edge definition
• Maximum depth of cut of 3.50 millimeters (0.138 inches)
• Compatible with clamp and pin insert holding methods
• Meets ISO 13399 standards for cutting tool data representation

Compatibility

Designed for use in TNMG-style toolholders that accept a 1/2-inch inscribed circle triangular insert with a 0.203-inch hole diameter. Compatible with material grades C1, C2, C6, and C7 per the Isoturn series specifications. Refer to toolholder manufacturer documentation to confirm seating and clamping compatibility before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing the insert. Secure the insert using the appropriate clamp or pin system as specified by the toolholder manufacturer, and verify that the insert is fully seated before resuming operation. Do not exceed the rated maximum depth of cut during initial test cuts.
