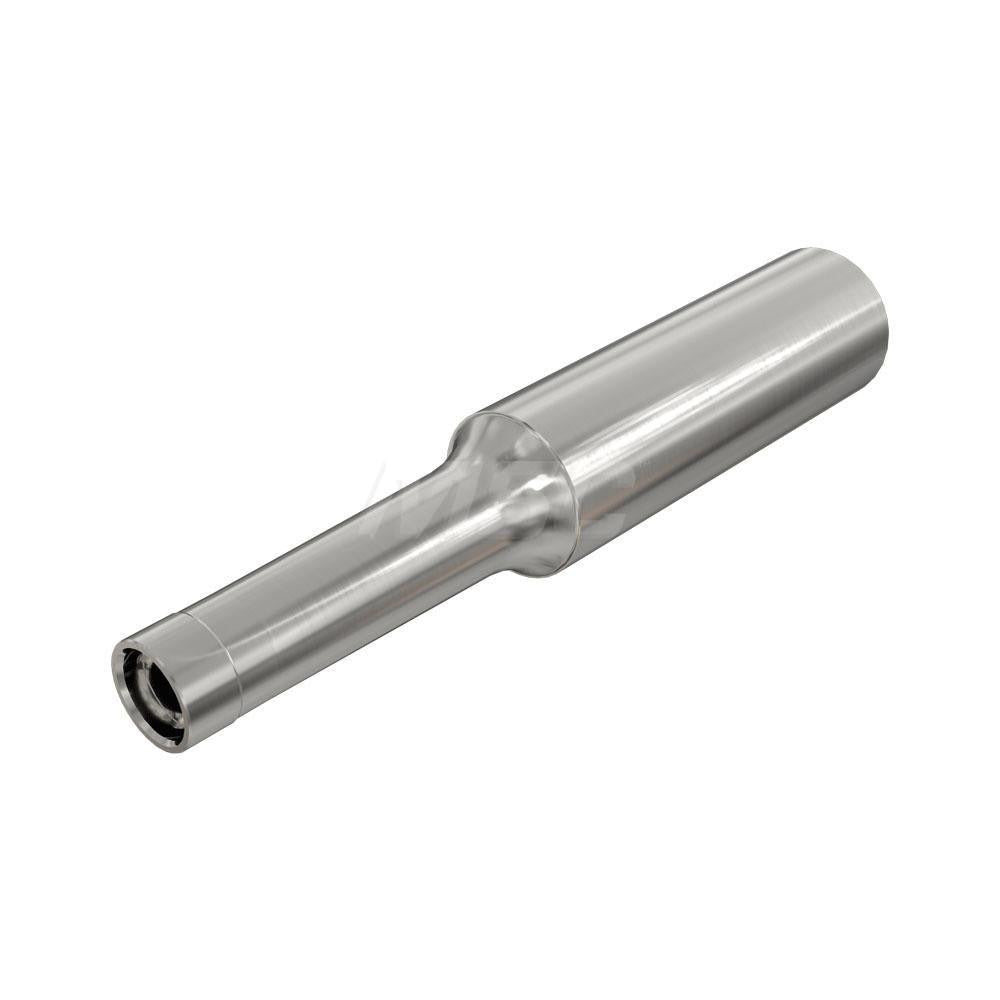

Iscar 4445245 Modular Reamer Body Axial Clamp Straight Shank

Product Description

The ISCAR 4445245 is an axial clamp straight shank modular reamer body designed for precision hole finishing in metal cutting applications. The body accepts a 16mm reamer head and features an axial clamping mechanism that secures the head firmly during operation, maintaining concentricity and reducing runout. With an overall length of 6.32 inches and a body length of approximately 4.35 inches, this tool is sized for typical CNC machining center and lathe applications. The straight shank configuration allows direct mounting in compatible tool holders. Weighing 0.637 pounds, the body is constructed for rigidity and repeatability in production environments. Installation and changeover are handled by machinists and tooling technicians.

This modular reamer body is suited for use in production machining environments where reamer heads are changed out to accommodate different bore diameters or when the cutting head reaches end of life. The axial clamp design allows for quick head indexing without disturbing the holder setup. Compatible with ISCAR modular reamer head systems using a 16mm head diameter interface. Typical applications include finish reaming of bored holes in ferrous and non-ferrous workpieces on CNC machining centers and turning centers.

Key Features

• Axial clamping method secures the reamer head for consistent concentricity and reduced runout
• Accepts 16mm diameter modular reamer heads
• Straight shank design for direct mounting in standard tool holders
• Overall length of 6.32 inches suits common machining center setups
• Right-hand cut orientation
• Lightweight at 0.637 pounds, reducing spindle load

Compatibility

Designed for use with ISCAR modular reamer heads with a 16mm head diameter. The axial clamp interface is specific to the ISCAR modular reamer system. Verify head interface compatibility with ISCAR tooling documentation before ordering.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Disengage spindle power and confirm the machine is in a safe, locked-out state before mounting or removing the reamer body. Use the correct torque tool for the axial clamp fastener as specified in the ISCAR tooling assembly instructions. Inspect the shank and head seating surfaces for chips or contamination before assembly to ensure proper head retention and runout performance.
