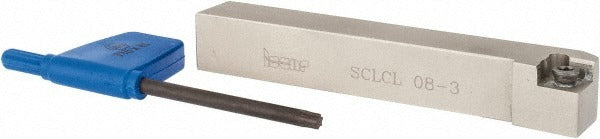

Iscar 3600865 Lh Sclc Turning Toolholder 0.5in Shank

Product Description

The ISCAR 3600865 is a left-hand SCLC-style indexable turning toolholder from the Isoturn series, designed for external turning operations on CNC and manual lathes. It features a 0.5 inch x 0.5 inch square shank, an overall length of 3.5 inches, and a neutral rake angle of 0 degrees. The toolholder uses a screw-clamp insert holding method to secure CC.T 3 series inserts, providing rigid, repeatable positioning at the cutting edge. A head length of 0.56 inches and a back-of-bar to cutting edge measurement of 0.63 inches define the cutting geometry. This toolholder is installed by machinists and CNC tool setup technicians in job shop and production turning environments.

This toolholder is suited for left-hand cutting direction in turning applications where the tool feeds toward the tailstock. The SCLC style accommodates CC.T 3 inserts, including the compatible CCMT3-1-WG insert size code. It is applicable to both light finishing and medium-duty turning operations on a variety of workpiece materials, depending on the insert grade selected. The Isoturn series is intended for use in standard external turning setups on horizontal and slant-bed lathes.

Key Features

• Left-hand cutting direction with SCLC toolholder style for external turning
• Neutral rake angle (0 degrees) for versatile insert performance
• Screw-clamp insert holding method for secure, repeatable seating
• Compatible with CC.T 3 inserts, including CCMT3-1-WG size code
• Square 0.5 inch x 0.5 inch shank fits standard toolpost and turret pockets
• Meets ISO 13399 tooling data standards for CAM and tool management integration

Compatibility

Designed for use with CC.T 3 series inserts, compatible insert size code CCMT3-1-WG. Fits standard toolposts and turret stations accepting a 0.5 inch x 0.5 inch square shank.

Installation Notes

This toolholder is installed by qualified machinists or CNC setup personnel. Ensure the lathe spindle is fully stopped and the machine is in an E-stop or locked-out state before changing toolholders or inserts. Verify shank seating in the toolpost or turret pocket and tighten to the machine manufacturer's specified clamping procedure. Use the correct Torx or hex key for the insert clamping screw and replace worn inserts before they contact the toolholder pocket.
