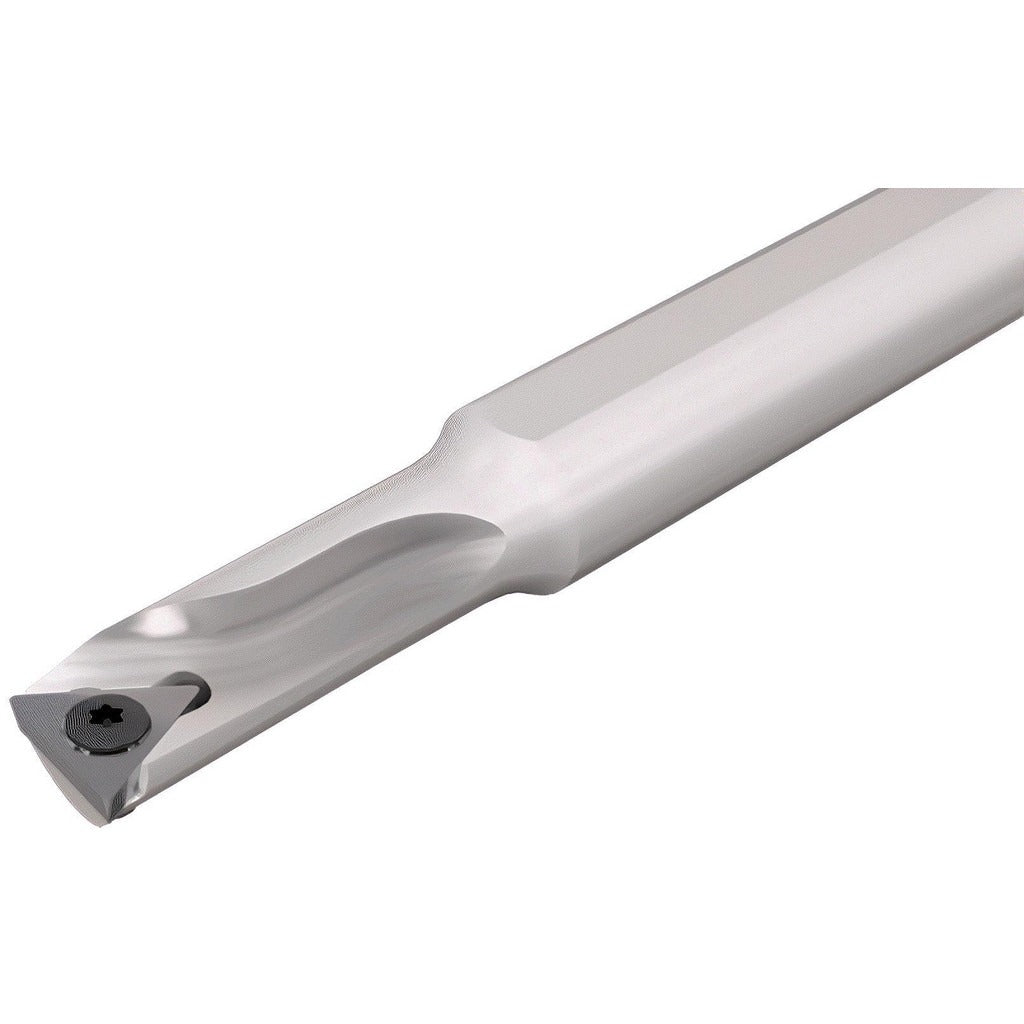

Iscar 3600007 Indexable Boring Bar Bbn 6-2 1/2 Inch Shank

Product Description

The ISCAR 3600007 is a BBN 6-2 style indexable boring bar from the Isoturn series, designed for internal turning and boring operations on CNC lathes and manual turning centers. The bar features a 0.394 inch minimum bore diameter and a 1/2 inch shank diameter, with a 5 inch overall length. Insert retention is by screw clamp, providing rigid and repeatable tool seating. The neutral rake geometry, with a 0-degree rake angle and a 0.220 inch center-to-cutting-edge dimension, suits a broad range of internal diameter finishing and semi-finishing applications. This tool is intended for use by machinists and toolroom professionals working with indexable tooling systems.

The 3600007 boring bar is suited for shops running internal diameter work on small-bore components where a minimum bore diameter of 0.394 inch is required. The 1/2 inch shank accommodates standard boring bar holders and tool blocks common on production and job-shop lathes. The 5 inch overall length provides sufficient reach for typical shallow-to-moderate depth bores without excessive overhang. It accepts TP.. 2 series inserts, making it compatible with ISCAR Isoturn insert families. Coolant-through capability is not included on this holder.

Key Features

• BBN 6-2 toolholder style in the ISCAR Isoturn series
• 0.394 inch minimum bore diameter for small internal diameter work
• 1/2 inch shank diameter fits standard boring bar holders and tool blocks
• 5 inch overall length with 0.220 inch center-to-cutting-edge dimension
• Screw clamp insert retention for secure, repeatable indexing
• Neutral rake, 0-degree rake angle geometry for versatile internal turning

Compatibility

Accepts TP.. 2 series indexable inserts. Designed for use in standard 1/2 inch shank boring bar holders on CNC and manual turning centers running Isoturn tooling configurations.

Installation Notes

Installation and tool changes should be performed by qualified machinists with the machine spindle stopped and all motion arrested. Secure the shank firmly in the boring bar holder to the holder manufacturer's specified clamping procedure before operation. Index or replace TP.. 2 inserts using the appropriate torx or hex key per the insert screw specification. Confirm minimum bore clearance against the workpiece bore diameter before engaging the cut.
