Iscar 3401338 Iscar 3/4x4x7 4F TiAlCN Carb Ball VP Flash Mill W/Flat

Product Description

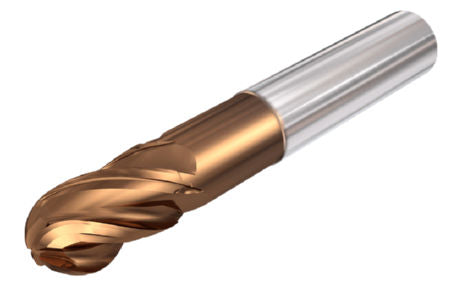

The Iscar 3401338 is a solid end-mill designed for milling applications. This product features a ball end with a TiAlCN coating that enhances its durability. It has a diameter of three-quarters of an inch and an overall length of seven inches, making it suitable for various milling tasks.

• Material: Carbide
• Flute Count: Four
• Coating: TiAlCN for effective cutting

Product Highlights

The Iscar 3401338 end-mill is effective in achieving fine finishes in materials. The four-flute design increases the material removal rate while maintaining the stability of the cut. Optimal for machining operations requiring precision and performance.

Product Information

Standard Information

• Brand: Iscar
• Part Number: EBI-4-750-4.0WVF7

Technical Specifications

• Diameter: 0.7500 (19.050 mm)
• Shank Diameter: 0.7500 (19.050 mm)
• Flute Length: 4.0000 (101.600 mm)
• Overall Length: 7.0000 (177.800 mm)
• Number of Flutes: 4
• End/Corner Shape: Ball End
• Coating/Finish: TiAlCN
