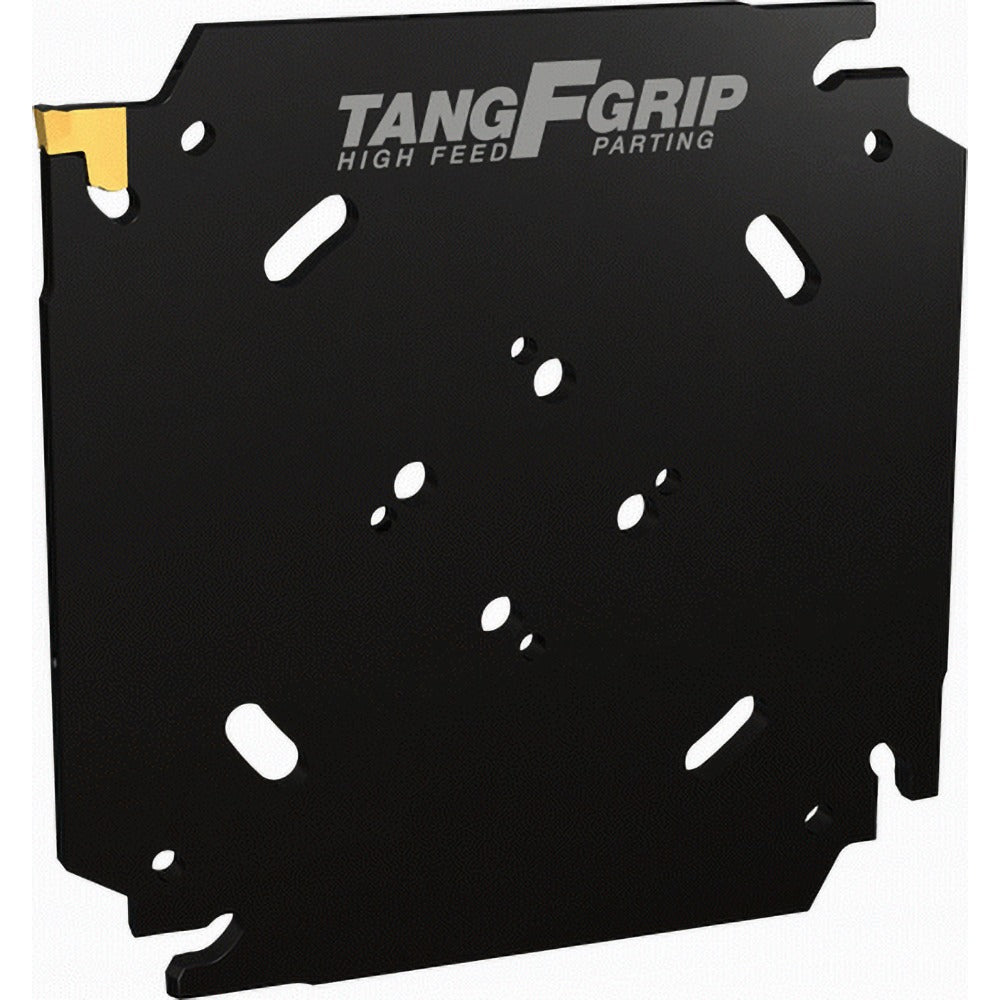

Iscar 3367508 Indexable Cutoff Blade Double End Rh

Product Description

The ISCAR 3367508 is a double-end, right-hand indexable cutoff blade from the LOGIQFGRIP TGAQ series, designed for parting and grooving operations on CNC lathes and turning centers. The blade measures 50 mm high by 2.5 mm wide by 50 mm long and accepts TAG-style inserts with a fixed 3 mm insert width. With a maximum workpiece diameter of 52 mm and a maximum depth of cut of 26 mm, this blade suits a range of small to medium diameter workpieces. It is installed by machinists and toolroom technicians working with indexable tooling systems.

This blade is suited for production turning environments where consistent parting geometry and quick insert indexing are priorities. The double-end design allows the blade to be flipped to extend service life before replacement. The square blade type provides stable seating in compatible toolholders. Typical applications include cutoff operations on bar-fed CNC lathes in job shops, production machine shops, and general metalworking facilities. The right-hand cutting direction is intended for standard spindle rotation setups.

Key Features

• Double-end design extends blade service life by allowing flip-and-reuse
• Accepts TAG-style inserts at a fixed 3 mm insert width
• Maximum depth of cut: 26 mm for small to medium diameter workpiece parting
• Maximum workpiece diameter: 52 mm
• Square blade type provides stable, repeatable toolholder seating
• Right-hand cutting direction for standard CNC lathe spindle rotation

Compatibility

The ISCAR 3367508 corresponds to manufacturers catalog number TGAQ D52-3-2Z-JHP and is designed for use with compatible LOGIQFGRIP TGAQ series toolholders that accept TAG-style inserts with a 3 mm insert width.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer's clamping and torque guidelines for indexable blade systems. Ensure the machine spindle is fully stopped and the CNC control is in a safe state before handling or indexing the blade. Confirm insert width and blade height are compatible with the toolholder before mounting. Follow all applicable shop safety procedures when working with sharp-edged cutting tools.
