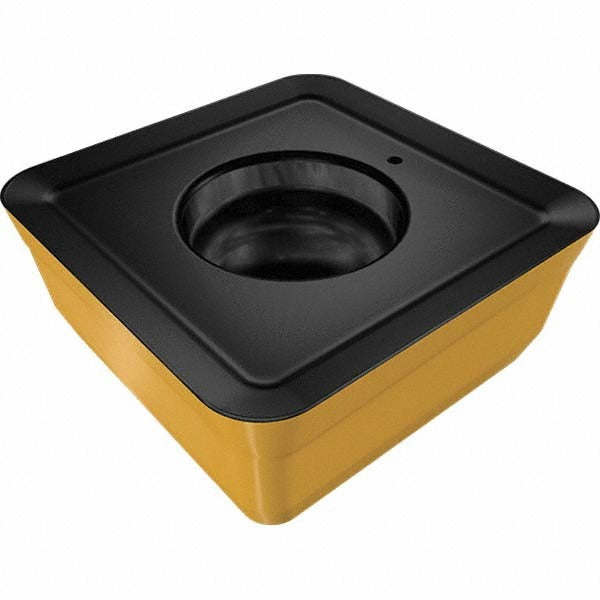

Iscar 3323469 Milling Insert Somt 090412HP IC830 Carbide

Product Description

The ISCAR 3323469 is a solid carbide milling insert designed for high-feed face milling operations. Manufactured under the MILL4FEED series and identified by ANSI code FFQ4 SOMT 090412HP IC830, this insert features a square shape with a 90-degree included angle and four usable cutting edges. The IC830 grade carbide substrate is coated with an AlTiN and TiN multilayer using a PVD Sumotec process, producing a wear-resistant surface suited for aggressive cutting conditions. At 3.80 mm thick and 8.50 mm wide, with a corner radius of 1.20 mm, the insert is engineered for controlled, positive-rake cutting with a maximum depth of cut of 1.40 mm. Licensed HVAC and metalworking professionals install this as a replaceable cutting element in compatible milling tool bodies.

The ISCAR 3323469 is a single-sided, neutral-hand insert intended for use in FFQ4-series high-feed milling cutters. Primary workpiece materials include steel, stainless steel, superalloys, and titanium, covering ISO material groups P, M, and S. The HP chip breaker geometry supports interrupted and continuous cuts in these demanding materials. Typical applications include face milling, shoulder milling, and pocket milling on machining centers where high metal removal rates and tool life are priorities. The screw-lock insert holding method provides secure seating during high-feed passes. This insert is sold individually with a minimum order quantity of 10 units.

Key Features

• IC830 grade with AlTiN and TiN PVD Sumotec coating for heat and wear resistance
• Four cutting edges on a square, 90-degree geometry for maximum insert utilization
• HP chip breaker optimized for steel, stainless steel, superalloys, and titanium
• Positive rake angle reduces cutting forces and heat generation at the tool tip
• Maximum depth of cut of 1.40 mm suited for high-feed, low-engagement strategies
• Screw-lock holding method ensures repeatable seating and accurate edge positioning

Compatibility

Designed for use in FFQ4-series milling cutter bodies. Conforms to ANSI and ISO 13399 standards. Compatible with workpiece materials designated under ISO groups P (steel), M (stainless steel), and S (superalloys and titanium).

Installation Notes

Installation is performed by machining professionals using the appropriate Torx or hex key driver specified by the cutter body manufacturer. Always power down and lock out the machine spindle before replacing inserts. Inspect the insert pocket and seating surfaces for chips or debris before installing a new insert, as contamination affects edge runout and part finish. Follow the cutter body manufacturer's seating and torque procedure for screw-lock inserts.
