Iscar 3100387 Indexable Chamfer End Mill 1-1.47in Cut

Product Description

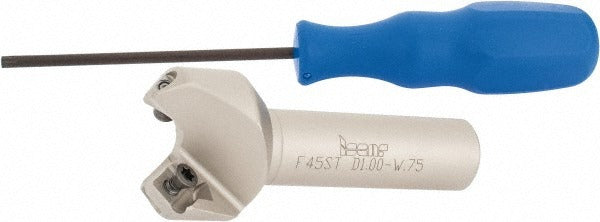

The ISCAR 3100387 is an indexable chamfer end mill designed for precision milling operations requiring a 45-degree lead angle. It accepts two indexable inserts and covers a cutting diameter range of 1 inch to 1.47 inches with a 3/4 inch Weldon flat shank. Overall length is 3.5 inches with a functional length of 1.25 inches and a maximum depth of cut of 0.26 inches. The F45ST toolholder style and screw-held insert mounting provide rigid, repeatable cutting performance. This tool is installed and operated by machinists and CNC tooling technicians in production and job-shop environments. It conforms to ISO 13399 tooling data standards.

The ISCAR 3100387 suits chamfering and angular milling applications on machining centers and CNC mills where a consistent 45-degree chamfer is required. The 1 inch to 1.47 inch cutting diameter range makes it applicable to moderate-sized workpieces in ferrous and non-ferrous materials. With two insert pockets and a Weldon flat shank, it seats securely in standard end mill holders and is suited for both roughing chamfer passes and finish chamfer work in production runs.

Key Features

• 45-degree lead angle for standard chamfering operations
• Cutting diameter range: 1 inch minimum to 1.47 inches maximum
• Accepts 2 indexable inserts in SE.. 1204 or SE.. 12T3.. styles, screw-held
• F45ST toolholder style with Weldon flat shank for positive drive
• Maximum depth of cut of 0.26 inches per pass
• Conforms to ISO 13399 tooling data standards
• No coolant-through; external coolant application required

Compatibility

Designed for use with SE.. 1204 and SE.. 12T3.. insert styles in the ISCAR F45ST toolholder series (manufacturers catalog number F45ST D1.00-W.75). Part of the IscarMill series.

Installation Notes
