Iscar 2801264 Indexable Grooving Toolholder Modular Grip

Product Description

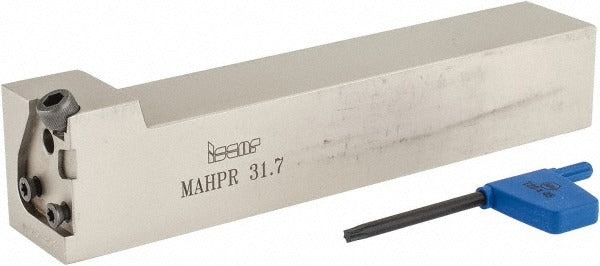

The ISCAR 2801264 is an external right hand indexable grooving toolholder designed for precision grooving operations on CNC lathes and turning centers. Built in the Modular Grip series, it uses a clamp-style insert holding method to secure indexable inserts during external non-face grooving cuts. The toolholder features a 1-1/4 inch by 1-1/4 inch square shank with an overall length of 7 inches, giving machinists solid reach and rigidity at the cut. At 3.1 pounds, it is a substantial, rigid holder suited for production turning environments where repeatable insert positioning is critical.

This toolholder is used in external grooving applications on turning machines where a right hand cutting direction is required. The MAHP-style designation identifies it within ISCAR Modular Grip toolholder configurations, making it compatible with the corresponding modular grip insert system. It is a standard choice for machine shops, job shops, and production facilities running CNC lathes requiring reliable external grooving performance. The multi-use designation indicates the holder can support a range of compatible insert widths within the Modular Grip system.

Key Features

• External, non-face grooving toolholder with right hand cutting direction
• MAHP-style holder in the Modular Grip series for secure indexable insert retention
• 1-1/4 inch by 1-1/4 inch square shank accommodates standard CNC lathe tool blocks
• 7 inch overall length with a 6.02 inch shank length for extended reach
• Clamp-style insert holding method for positive, repeatable insert seating
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with ISCAR Modular Grip series indexable grooving inserts. The MSC/Manufacturer designation for this holder is MAHPR/L 31.7. Verify insert compatibility with ISCAR Modular Grip series specifications before ordering inserts.

Installation Notes

Installation is performed by a qualified machinist or CNC toolroom technician. Power down and lock out the machine before mounting or removing the toolholder from the turret or tool block. Use the appropriate torque wrench and insert clamping hardware specified by the toolholder manufacturer when seating indexable inserts. Confirm shank seating depth and tool overhang meet machine and application requirements before resuming cuts.
