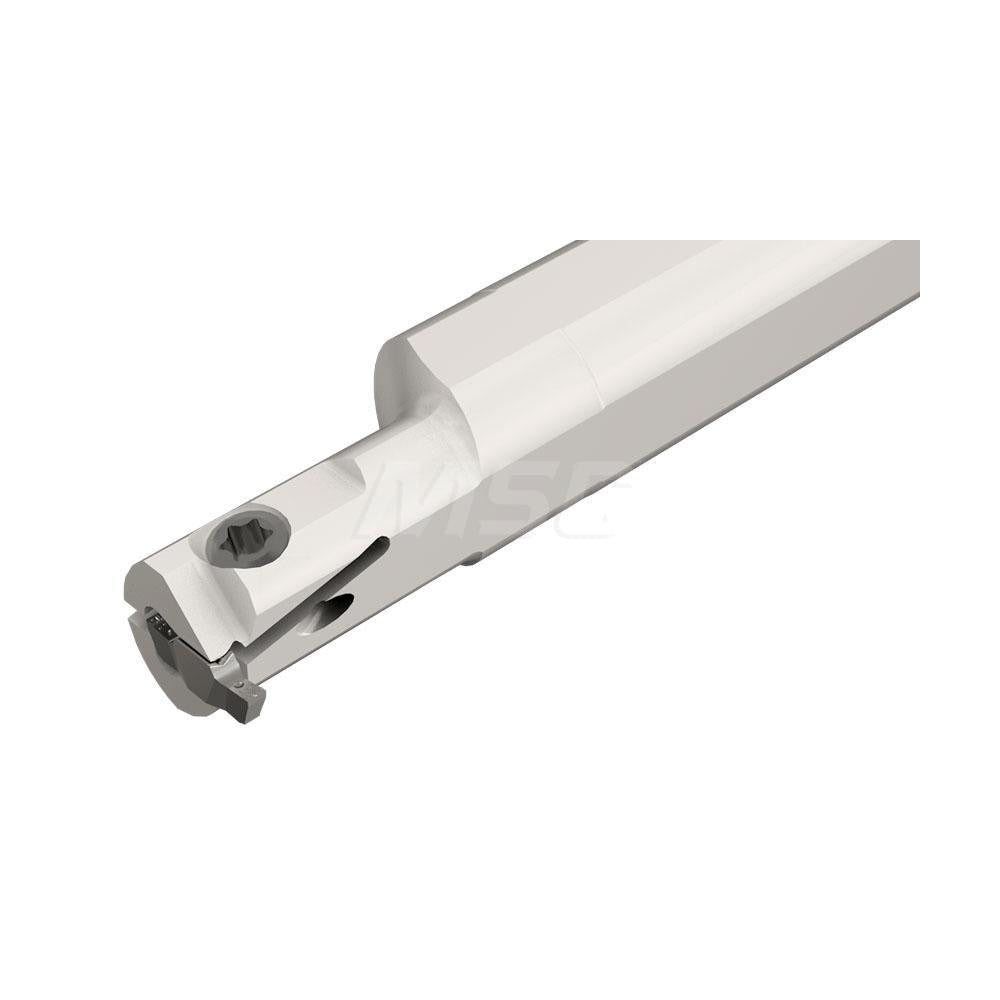

Iscar 2801195 Internal Grooving Toolholder Gehim Cut Grip

Product Description

The ISCAR 2801195 is a right-hand internal indexable grooving toolholder designed for precision groove cutting in bored or pre-drilled workpieces. Built to the GEHIM toolholder style within ISCAR's Cut Grip series, it accepts GEPI-family inserts secured by a clamp holding method. The toolholder handles groove widths from 0.031 to 0.075 inches with a maximum depth of cut of 0.098 inches, making it well suited for tight internal groove profiles. Through-coolant capability directs fluid directly to the cutting zone, supporting chip evacuation and tool life in demanding applications. Overall length is 6 inches with a 0.625-inch round shank.

This toolholder is intended for internal non-face grooving operations on CNC lathes and turning centers. The 0.625-inch shank diameter and 0.63-inch minimum hole diameter requirement make it appropriate for small-bore internal grooving work. The cutting direction is right hand, and the tool is rated for universal primary workpiece material groups, covering ISO material codes H, K, M, N, P, and S. It is a single-application tool with no multi-use designation. Machinists and toolroom professionals working on precision turned components will find this toolholder a direct fit for tight-tolerance internal groove applications.

Key Features

• Groove width range: 0.031 to 0.075 inches for versatile internal profile work
• Maximum depth of cut: 0.098 inches
• Through-coolant design for improved chip control and cutting zone cooling
• Clamp-style insert holding for secure, repeatable GEPI insert indexing
• GEHIM toolholder style in the Cut Grip series, conforming to ISO 13399
• Compatible with universal workpiece materials across ISO groups H, K, M, N, P, and S

Compatibility

Accepts GEPI, GEPI (W less than M), GEPI-MT, GEPI-RX/LX, and GEPI-WT inserts. Compatible insert size code series is GEPI. Minimum bore hole diameter for installation is 0.63 inches.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The machine spindle must be fully stopped and all motion locked out before mounting or indexing inserts. Confirm shank diameter clearance and minimum hole diameter requirements before setup. Follow the machine tool manufacturer's torque specifications for clamping hardware, and verify coolant port alignment when using the through-coolant feature.
