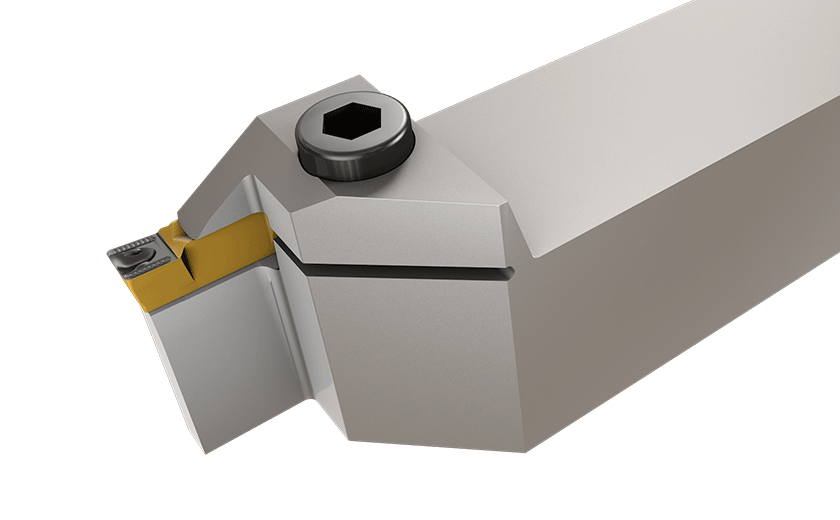

Iscar 2500610 Iscar 1.1/4x7 RH Heligrip Holder W.157-.187 Tmax.98

Product Description

The Iscar 2500610 is a right-hand Heligrip holder designed for turning applications. It features an overall length of seven inches. The holder supports insert widths from zero point one five seven inches to zero point one eight seven inches. The design is optimized for efficient cutting in various materials.

• Shank height: one point two five inches
• Blade width: zero point one two six inches
• Max parting diameter: one point nine seven inches

Product Highlights

This holder is suited for professional turning tasks. It enhances tooling efficiency and accuracy.

Product Information

Standard Information

• Brand: Iscar
• Direction: Right

Technical Specifications

• Shank Height: 1.2500 inches
• Shank Width: 1.2500 inches
• Overall Length: 7.0000 inches
• Blade Width: 0.1260 inches
• Min. Insert Width: 0.1570 inches
• Max. Insert Width: 0.1870 inches
• Max. Parting Diameter: 1.9700 inches
• Coolant: No
