Iscar 2500211 ISCAR 1x6 RH FACE GRV HOLDER W.157 5.51-9.45 Tmax.980

Product Description

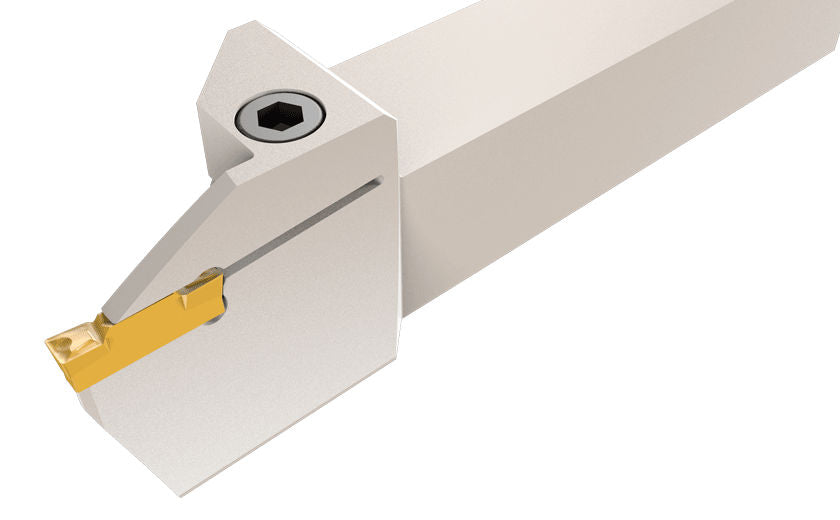

The ISCAR 1x6 RH Face Grooving Holder with part number 2500211 is designed for specific turning tasks. This holder functions effectively with a minimum groove diameter of five point five one inches and a maximum groove diameter of nine point four five inches. The holder supports face grooving applications and is constructed for right-hand operation.

• Constructed for right-hand operation.
• Suitable for face grooving and turning tasks.
• Compatible with Heliface system.

Product Highlights

The ISCAR face grooving holder ensures precision in turning tasks by accommodating various groove diameters. Its robust design makes it an essential tool for tradesmen seeking reliable performance.

Product Information

Standard Information

• Brand: Iscar
• Part Number: HFHR-25.4-140-4T25

Technical Specifications

• Min. Groove Diameter: 5.5100 inches
• Max. Groove Diameter: 9.4500 inches
• Max Groove Depth: 0.9800 inches
• Insert Width: 0.1570 inches
• Shank Height: 1.0000 inches
• Shank Width: 1.0000 inches
• Overall Length: 6.0000 inches
• Application: Face Grooving and Turning
