Product Description

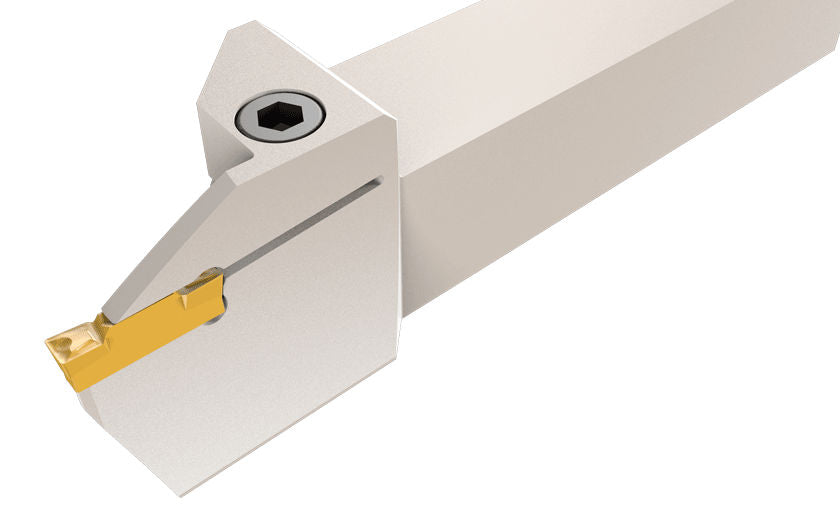

The Iscar 1x6 RH Face Groove Holder with MPN 2500203 is designed for efficient face grooving and turning applications. This tool accommodates a minimum groove diameter of one point eight nine inches and a maximum groove diameter of two point three six inches. The holder has a maximum groove depth of zero point nine eight inches and an insert width of zero point one five seven inches. The overall length of this holder measures six inches with a shank height and width of one inch.
- Min. groove diameter: 1.8900 inches
- Max. groove diameter: 2.3600 inches
- Application: Face grooving and turning
Product Highlights
This tool is perfect for precise face grooving and turning tasks. It is designed with a right-hand direction for versatile use in machining.
Product Information
Standard Information
-
Brand: Iscar
-
MPN: 2500203
Technical Specifications
-
Min. Groove Diameter: 1.8900 inches
-
Max. Groove Diameter: 2.3600 inches
-
Max Groove Depth: 0.9800 inches
-
Insert Width: 0.1570 inches
-
Shank Height: 1.0000 inches
-
Shank Width: 1.0000 inches
-
Overall Length: 6.0000 inches
-
Direction: Right
-
Application: Face Grooving and Turning
-
System: Heliface
