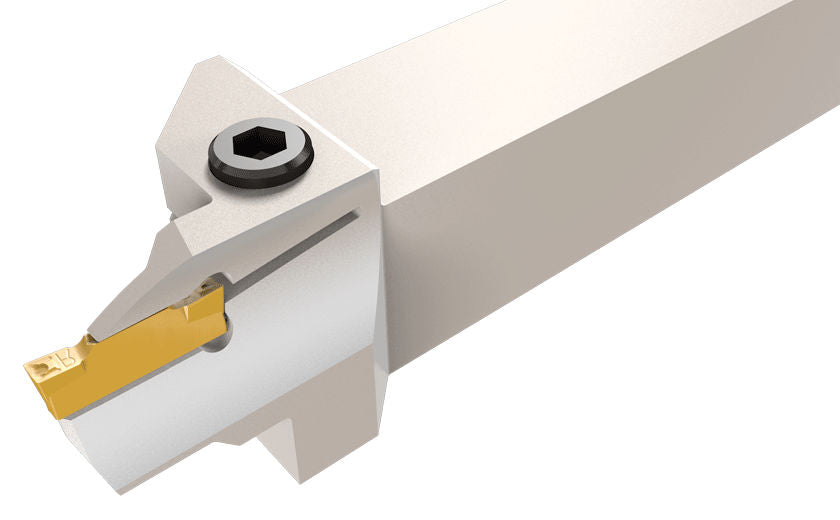

Iscar 2500099 ISCAR 1x6 RH FACE GRV HOLDER W.118 2.94-3.94 Tmax.980

Product Description

The Iscar 1x6 RH Face Grooving Holder, model 2500099, is designed for face grooving and turning applications. The holder offers a minimum groove diameter of two point nine five inches and a maximum groove diameter of three point nine four inches. It features a maximum groove depth of zero point nine eight inches. The holder directs tool operation to the right, making it suitable for various turning tasks.

• Shank height of one inch
• Shank width of one inch
• Overall length of six inches

Product Highlights

This holder is compatible with rectangular inserts, enhancing versatility in turning and grooving.

Product Information

Standard Information

• Brand: Iscar
• Part Number: HFHR-25.4-75-3T25

Technical Specifications

• Min. Groove Diameter: 2.9500 inches
• Max. Groove Diameter: 3.9400 inches
• Max Groove Depth: 0.9800 inches
• Insert Width: 0.1180 inches
• Shank Height: 1.0000 inches
• Shank Width: 1.0000 inches
• Overall Length: 6.0000 inches
• Direction: Right
• Application: Face Grooving and Turning
• System: Heliface
