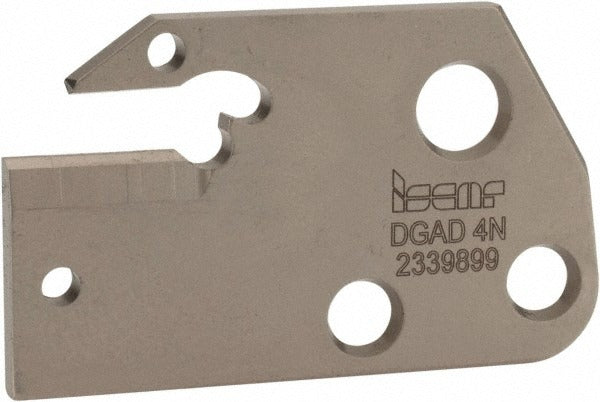

Iscar 2395846 Indexable Grooving Blade Right Hand

Product Description

The ISCAR 2395846 is an indexable grooving blade designed for precision grooving, parting, and turning operations on CNC lathes and similar turning centers. Part of the Do-Grip series and carrying the DGAD 4N catalog designation, this right-hand blade stands 1.1811 inches high with a blade width of 0.1260 inches and an overall length of 1.9882 inches. It uses a self-grip insert holding method for secure, repeatable insert seating without additional clamping hardware. The blade supports a minimum groove width of 0.1575 inches and is rated for a maximum workpiece diameter of 1.9685 inches. Machinists and toolroom professionals install this blade into compatible toolholders as part of a modular grooving system.

This blade is suited for external grooving, parting, and profiling on workpieces up to 1.9685 inches in diameter. It is intended for use in production turning environments where repeatable groove geometry and quick insert changes are required. The right-hand cutting direction makes it appropriate for standard lathe setups where the tool advances from right to left. Compatible insert styles include DGN R/L, DGN, GRIP, HGN, and HGR/L series inserts, providing flexibility across a range of groove width and geometry requirements.

Key Features

• Right-hand cutting direction for standard turning center setups
• Self-grip insert holding method for tool-free, repeatable insert indexing
• Blade height of 1.1811 inches and overall length of 1.9882 inches for compact toolholder integration
• Supports minimum groove width of 0.1575 inches with maximum workpiece diameter of 1.9685 inches
• Compatible with multiple insert styles: DGN R/L, DGN, GRIP, HGN, and HGR/L series
• Conforms to ISO 13399 cutting tool data standards

Compatibility

Compatible insert styles include DGN R/L, DGN, GRIP, HGN, and HGR/L series inserts as specified by ISCAR for the Do-Grip and Do Grip tooling system.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before changing or indexing inserts or repositioning the blade in the toolholder. Verify blade seating and insert engagement before resuming cutting operations. Follow the machine tool manufacturer torque and clamping specifications for the toolholder assembly.
