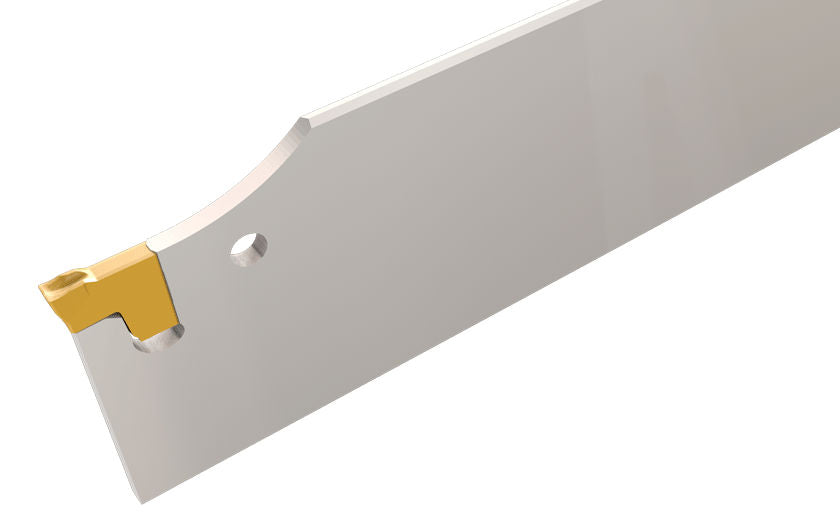

Iscar 2302861 1.1/4 Tang-Grip Dbl End Cutoff Blade (Req Etg-1.4/1.6)

Product Description

The Iscar 1.1/4 Tang-Grip Double End Cutoff Blade is designed for cutting operations with high precision and efficiency. This blade is suitable for various machining applications requiring a neutral cutting direction.

• Blade Height: one point two six inches
• Max Cut: one point five inches
• Neutral cutting direction

Product Highlights

This blade is ideal for contouring and grooving. It can handle insert widths ranging from zero point zero six three inches to zero point zero six three inches.

Product Information

Standard Information

• Brand: Iscar
• Blade Height: one point two six inches

Technical Specifications

• Part Number: TGFH-32-1.6
• Blade Width: zero point zero five one inches
• Base Length: five point nine zero six inches
• Min Insert Width: zero point zero six three inches
• Max Insert Width: zero point zero six three inches
• Max Cut: one point five inches
• Coolant Required: No
• Direction: Neutral
