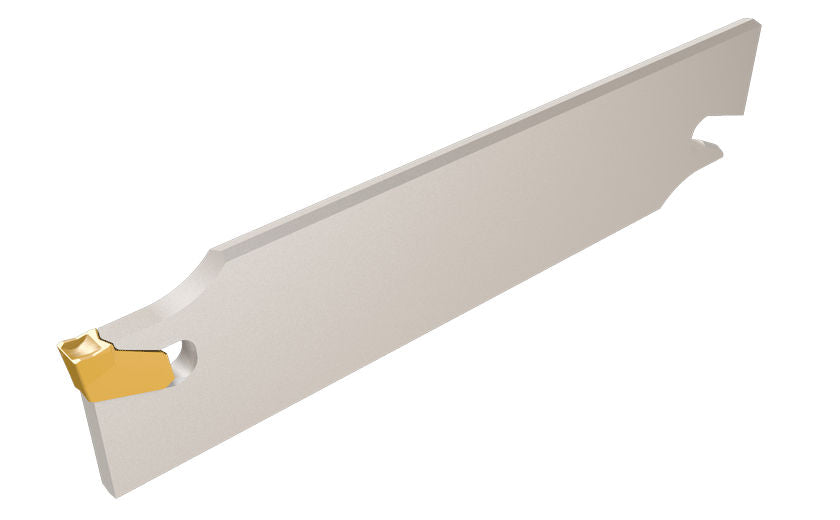

Iscar 2301238 SGFH-26-1.2 1 DBL-END CUTOFF BLADE W.047 GFN-1.2

Product Description

The Iscar SGFH-26-1.2 is a precision double-ended cutoff blade designed for efficient machining. This blade from Iscar features a maximum cut depth of zero point seven nine inches, making it suitable for various turning applications. Its neutral direction ensures versatility in different setups.

• Blade height measures one point zero two four inches.
• Base length is four point three three one inches.
• Compatible with maximum and minimum insert widths of zero point zero four seven inches.

Product Highlights

This cutoff blade is ideal for creating grooves and performing cutoff operations with rectangular inserts.

Product Information

Standard Information

• Brand: Iscar
• Part Number: SGFH-26-1.2

Technical Specifications

• Blade Height: 1.024 inches
• Blade Width: 0.037 inches
• Base Length: 4.331 inches
• Min. Insert Width: 0.047 inches
• Max. Insert Width: 0.047 inches
• Max. Cut: 0.790 inches
• Coolant Requirement: No
• Direction: Neutral
