ISB LIGHTING & POWER SOURCE E-MCAWDD401 Sola E-MCAWDD401 400 Watt Pulse Start Metal Halide Ballast

Product Description

The ISB LIGHTING & POWER SOURCE E-MCAWDD401 is a pulse start metal halide ballast designed for use with 400-watt lamps. This ballast operates on multiple voltage systems for flexibility in installation.

• High power factor of 90% for improved efficiency
• Insulation class temperature rating of one hundred eighty degrees Fahrenheit

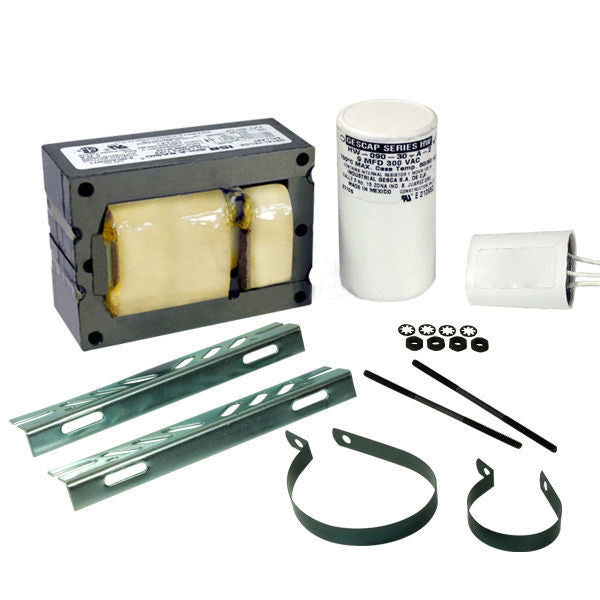

• Includes dry capacitor and ignitor

Product Highlights

Suitable for high-heat environments such as warehouses and manufacturing facilities.

Product Information

Standard Information

• Brand: ISB LIGHTING & POWER SOURCE
• MPN: E-MCAWDD401

Technical Specifications

• Lighting Technology: Metal Halide
• ANSI Code: M135/M155
• UL Listed: Yes
• : 400 Watt
• Voltage: 120/208/240
• Ballast Type: CWA
• Operates: MH400/PS
• Start Temp. (Min): -20 Deg. F
• Start Temp. (Max): 221 Deg. F
• Power Factor: 90%
• Start Method: Pulse Start
• CSA Listed: Yes
• Length: 4.75 in
• Height: 4.25 in
• Width: 4.1 in
• Weight: 14 Ibs
• Warranty: 2 Years
