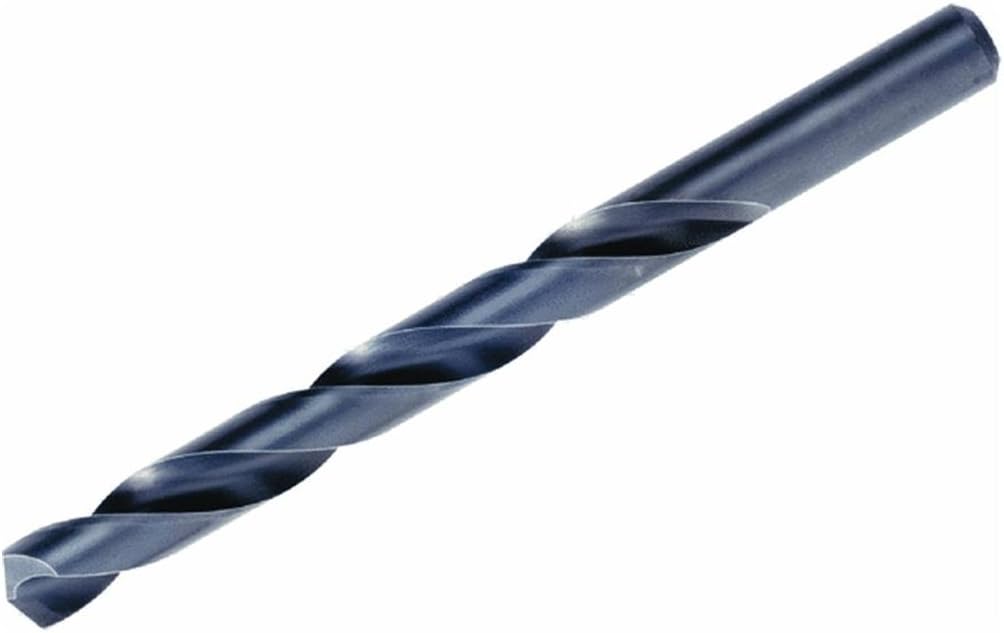

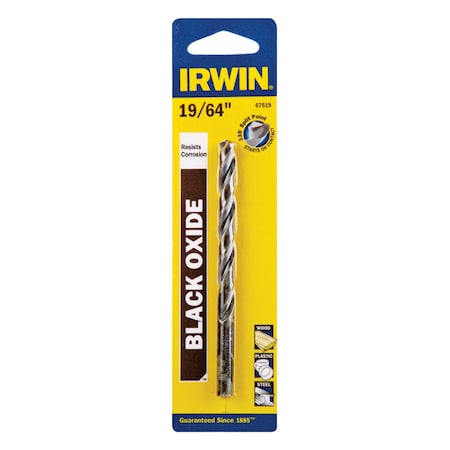

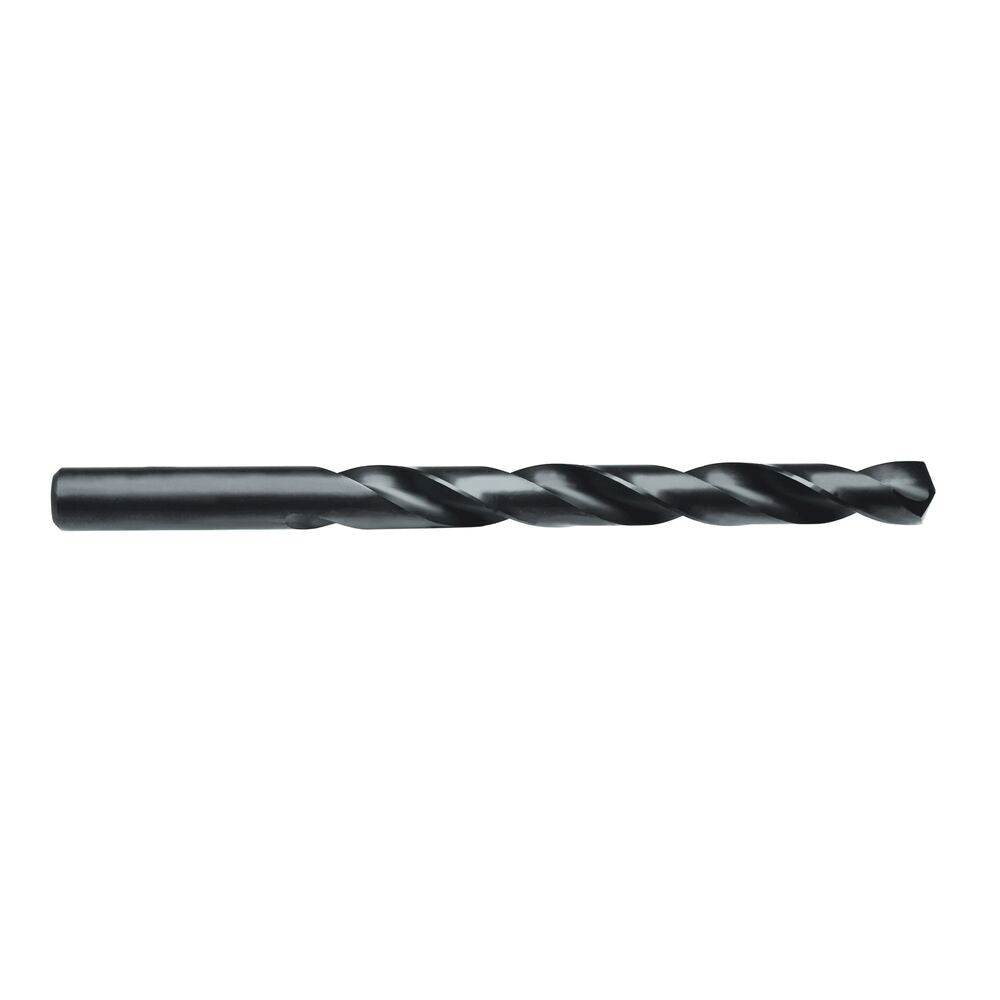

Irwin 67519 675 Heavy Duty Jobber Length Drill 19/64 In Dia X 4-3/8 In Oal

Product Description

The IRWIN 67519 675 Heavy Duty Jobber Length Drill is ideal for basic drilling applications in metal, wood, and plastic. Constructed of M-2 high speed steel for strength, heat resistance, and wear resistance. The 135 degree split point ensures a true start and eliminates bit walking.

• Constructed of M-2 high speed steel
• Suitable for use in wood, metal, and plastic
• Black oxide coating resists corrosion

Product Highlights

The drill bit features a 135 degree split point that ensures a true start and eliminates bit walking.

Product Information

Standard Information

• Brand: IRWIN
• Manufacturer Part Number: 67519
• Country of Origin: China

Technical Specifications

• Finish: Black,Black Oxide
• Material: High Speed Steel
• Measurement System: Metric
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Core Drill Bit
• MPN: 67519
• Bit Type: Twist
• Length [In]: 4.375
• Bit Diameter: 19/64"
• Bit Material: Black Oxide
• Drill Bit Type: Twist
• Surface Coating: Black Oxide
• Package Quantity: 1
• Flute Length (In): 3.062
• Minimum Chuck Size: Not Applicable
• Shank Diameter (In): 0.296
• Drill Bit Length Type: Jobber
• Quick Change Impact Driver Bit: No
• Country of Origin (subject to change): China
• Drill Bit: Drill Bit,19/64,135deg,Black Oxide
• Point type: Split point
• Shank Dia.: 19/64"
• Drill Bit Size: 19/64"
• Drill Bit Finish: Black Oxide
• Cutting Direction: Right Hand
• Drill Bit Grouping: Drill Bit
• Drill Bit Material: HSS
• Drill Bit Point Angle: 135 Degrees
• Drill Bit Dimension Type: Fractional Inch
• Manufacturer: Irwin
• Manufacturer #: 67519
• Drill Bit Size (Inch): 19/64
• Drill Bit Size (Decimal Inch): 0.2969
• Drill Point Angle (Degrees): 135
• Coating/Finish: Oxide
• Flute Type: Regular Spiral
• Point Type: Split
• Coolant Through: No
• Number of Flutes: 1
• Flute Length (mm): 77.79
• Flute Length (Decimal Inch): 3.0625
• Flute Length (Inch): 3-1/16
• Shank Diameter (Decimal Inch): 0.2969
• Overall Length (mm): 111.13
• Overall Length (Inch): 4-3/8
• Spiral Type: Regular
• Overall Length (Decimal Inch): 4.3750
• Proprietary Coating/Finish: Black Oxide
• Series: 675
• Tool Application: Drilling
• Flute By Diameter Ratio: 10xD
• Shank Diameter (Inch): 19/64
• Maximum Drilling Depth (Decimal Inch): 3.0625
• Maximum Drilling Depth (Inch): 3-1/16
• Shank Length (Decimal Inch): 1.3125
• Shank Length (Inch): 1-5/16
• Number of Flats: 0
• Web Thinning: Web-Thinned
• Web Configuration: Tapered
• Shank Type: Straight
• Tool Performance: General Purpose
• Double Margin: No
• Drill Bit Grade: General Purpose
• Drill Bit Size Range (Decimal Inch): 0.2500 - 0.3000
• Material Grade: M2
• Applicable Materials: Metal Plastic Wood
• Brand: Irwin
• Category: POWER DRILLING & ACCESSORIES
• Diameter: 19/64 in
• Flute Length: 3-1/16 in
• Grade: M2
• Point Angle: 135 deg
• Shank Diameter: 19/64 in
• Shank Length: 1-1/3 in
• Type: Heavy Duty
• Special: With Solid Structure
