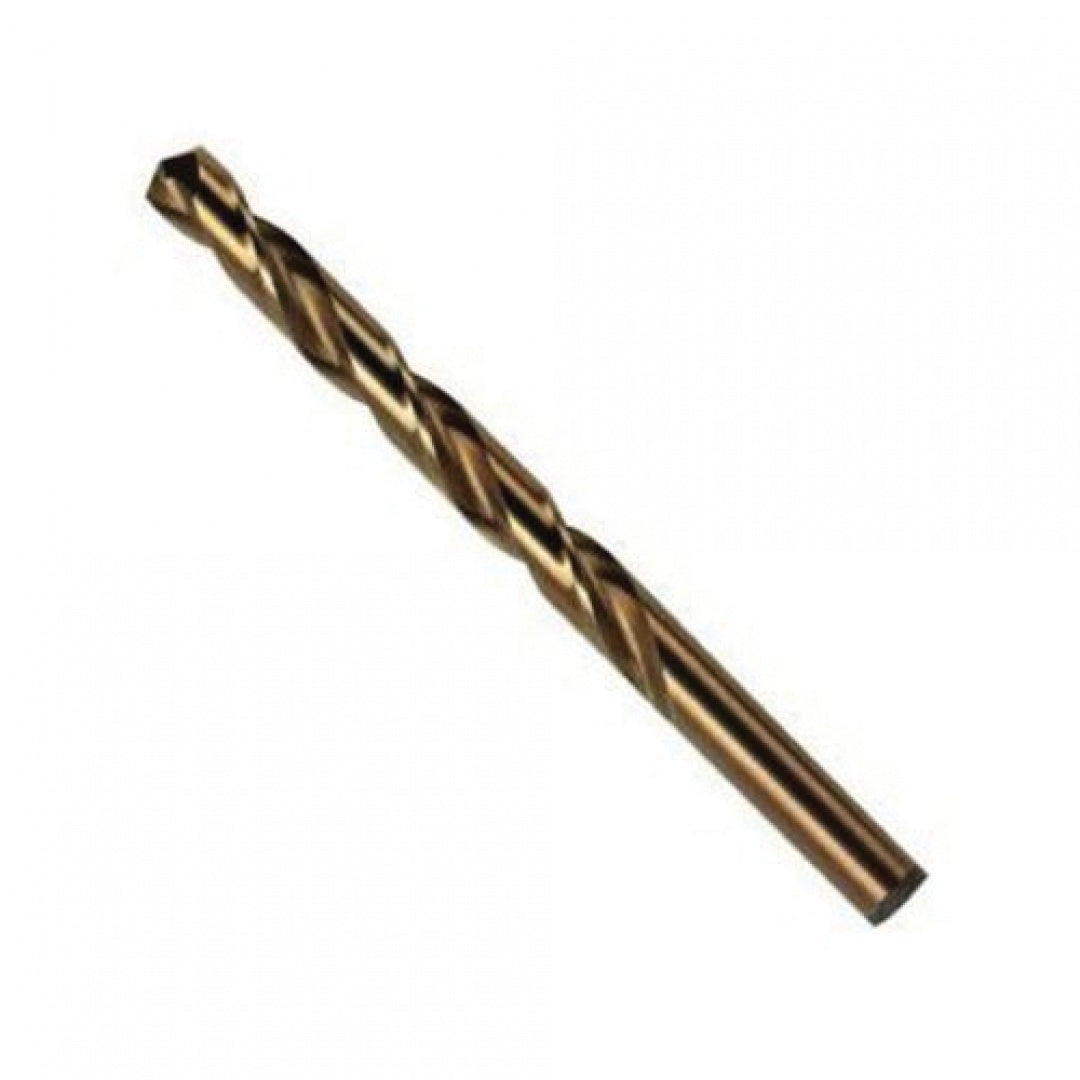

Irwin 63109 9/64 Drill Bit Cobalt Jobber Length

Product Description

The Irwin Industrial Tool Company 63109 is a jobber length drill bit. It features a diameter of 9/64 inch and is designed for use in tough metal applications. This drill bit is constructed from M-35 cobalt high-speed steel, offering excellent resistance against wear and heat.

• Drill Size: 9/64 inch
• Overall Length: 2-7/8 inches
• Right-hand cutting direction with a 135-degree split point

Product Highlights

This drill bit is suitable for drilling hard steel, stainless steel, and titanium. Its design allows for easier penetration and less feed pressure, making it an effective choice for professional applications.

Product Information

Standard Information

• Manufacturer: Irwin Industrial Tool Company
• Part Number: 63109

Technical Specifications

• Drill Size (Fraction): 9/64 inch
• Drill Size (Decimal Inch): 0.1406 inch
• Cutting Depth: 1-3/4 inches
• Flute Length: 1-3/4 inches
• Overall Length: 2-7/8 inches
• Cutting Edge Material: M35 HSS-Co 5
• Point Angle: 135 degrees
• Point Type: Split
