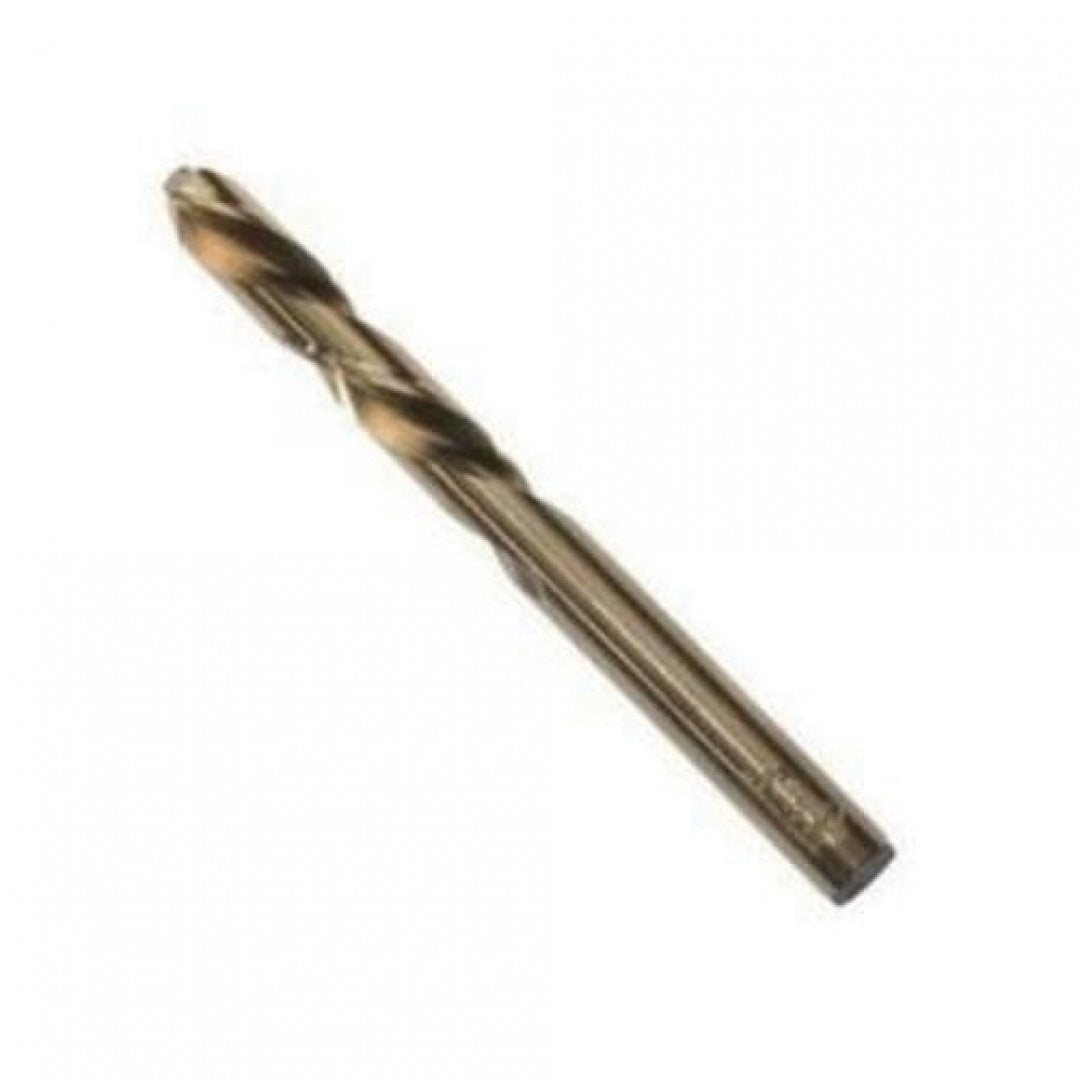

IRWIN 30505ZR DRL 5/64 LHCOB ML 135' BULK

Product Description

The IRWIN 30505ZR is a left-hand mechanics length drill bit designed for precision drilling. Made of M-42 high-speed steel with eight percent cobalt, this drill bit offers superior performance in tough materials. The bit measures five sixty-fourths of an inch in diameter and is molded for fractional uses. It features a spiral flute design for efficient chip removal and a split point for easy penetration.

• Left-hand cutting direction
• 135-degree split point minimizes feed pressure
• Suitable for a variety of materials including stainless steel and cast iron

Product Highlights

This drill bit is ideal for use in applications where conventional drilling becomes difficult. The left-hand cutting capability allows it to drill into or extract fasteners effectively.

Product Information

Standard Information

• Manufacturer: IRWIN INDUSTRIAL TOOL COMPANY
• MPN: 30505ZR

Technical Specifications

• Drill Size - Fraction: 5/64 in
• Drill Size - Decimal Inch: 0.0781 in
• Overall Length: 2 in
• Flute Length: 1 in
• Number of Flutes: 2
• Point Angle: 135 deg
• Cutting Direction: Left Hand
• Applicable Materials: Sheet Metal, Mild Steel, High Alloy Steel, Stainless Steel, Cast Iron
• Cutting Edge Material: M42 HSS-Co 8
• Finish: Gold Oxide
• Series: 305
• Shank Type: Cylindrical
