Irritrol KD900-INT KD2 9 Station Indoor Controller

Product Description

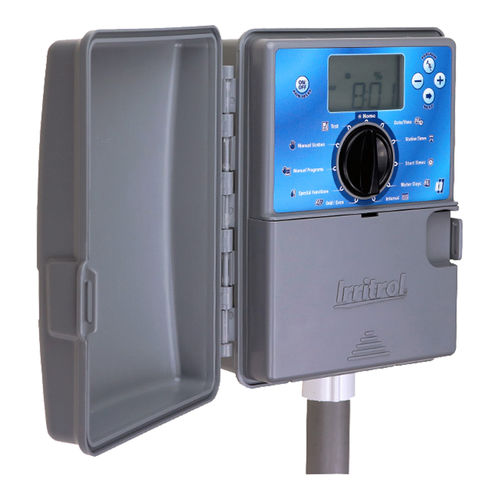

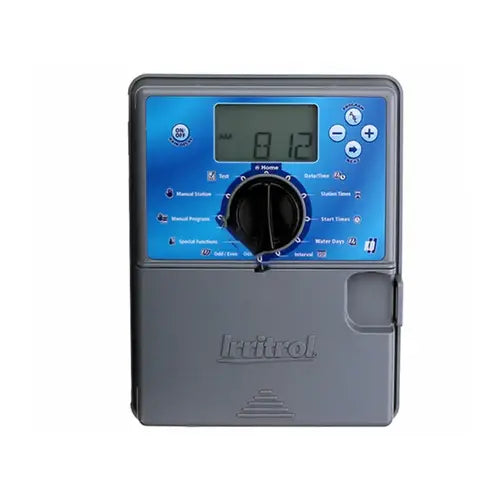

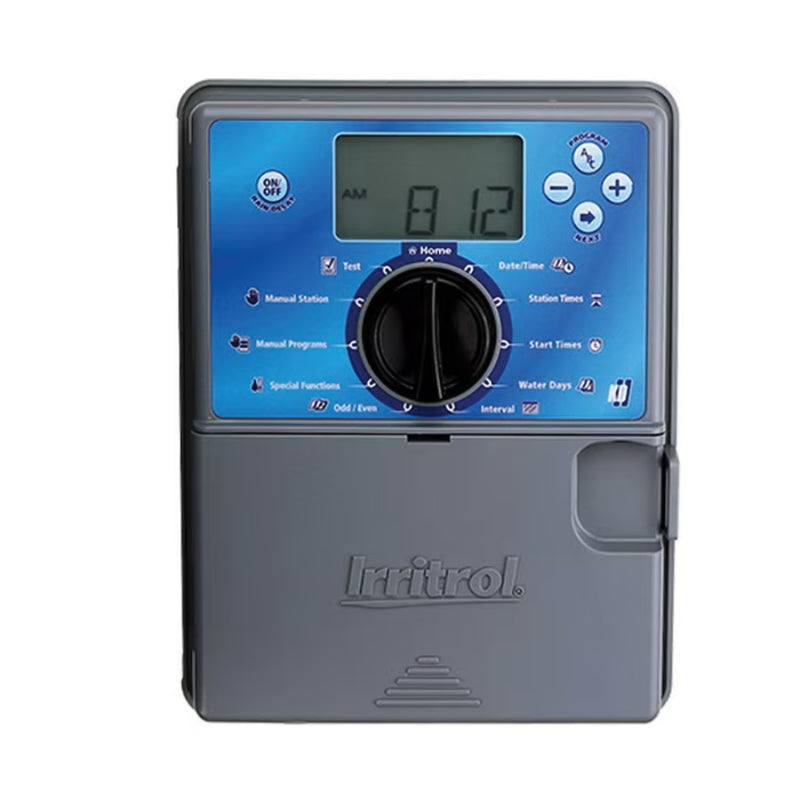

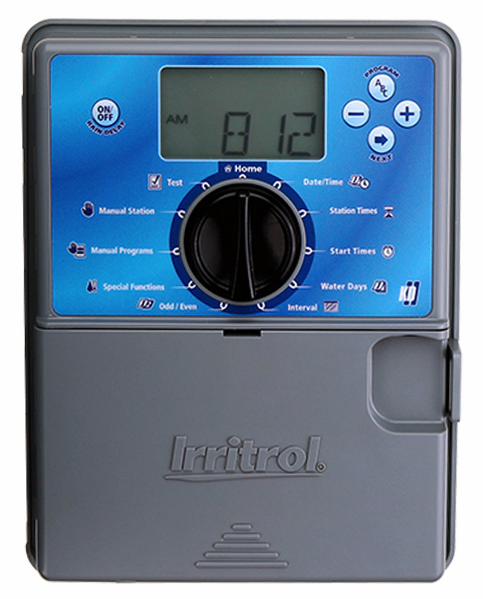

The IRRITROL KD900-INT KwikDial 9 Station Indoor Controller is an AC-powered irrigation controller designed for residential applications. It offers sophisticated features with simple operation, including automatic, semi-automatic, and manual modes. This controller provides excellent scheduling flexibility with multiple watering intervals and seasonal adjustment capabilities. It features electrical surge protection and a self-diagnostic electronic circuit breaker for enhanced reliability, maintaining time, date, and programming for 24 hours without AC power.

• CLIMATE LOGIC compatible for automatic watering adjustments based on weather.
• Three independent programs allow differing watering days, start times, and station run times.
• Self-diagnostic, electronic circuit breaker identifies and overrides electrical shorts in valves or wiring.

Product Highlights

Features include electrical surge protection, non-volatile memory, and compatibility with remote systems for flexible irrigation management.

Product Information

Standard Information

• Brand: IRRITROL
• Manufacturer Part Number: KD900-INT

Technical Specifications

• Brand: Irritrol
• Product Type: Standard Controller
• Expandability: Fixed
• Power Source: AC Powered (with pigtail)
• Number of Programs: 3
• Start Times Per Program: 3
• Max Station Run Time: 4 hours
• Indoor Use: Yes
• Sensor Compatibility: Rain, Freeze
• Application: Residential
• Series: KD2
• Zones: 9
• Enclosure Type: Indoor
• Station Run Time Range: 1-240 minutes (4 hours)
• Daily Start Times: Up to 9 (3 per program)
