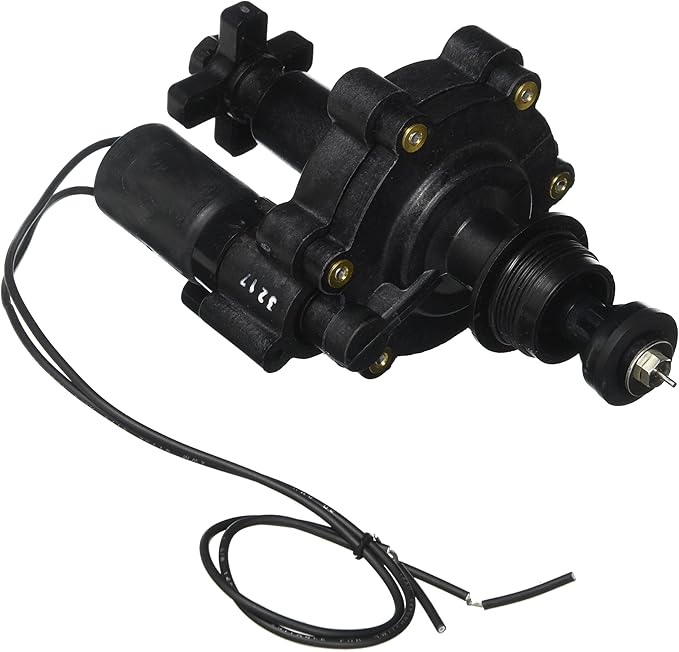

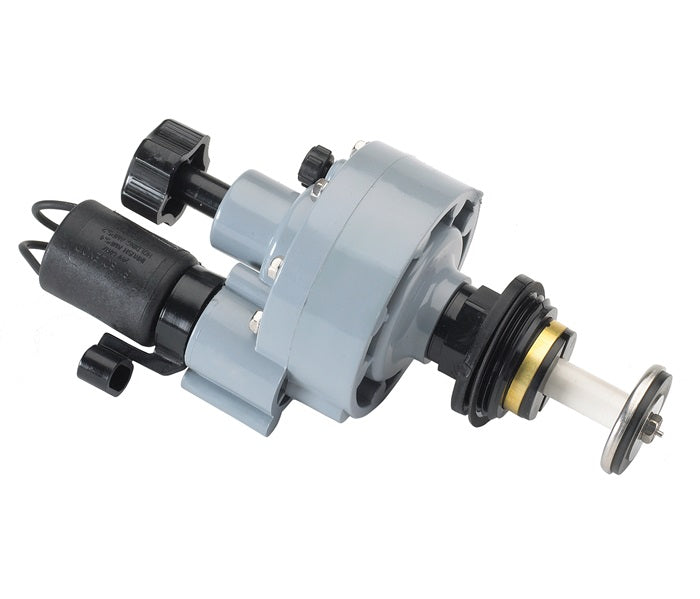

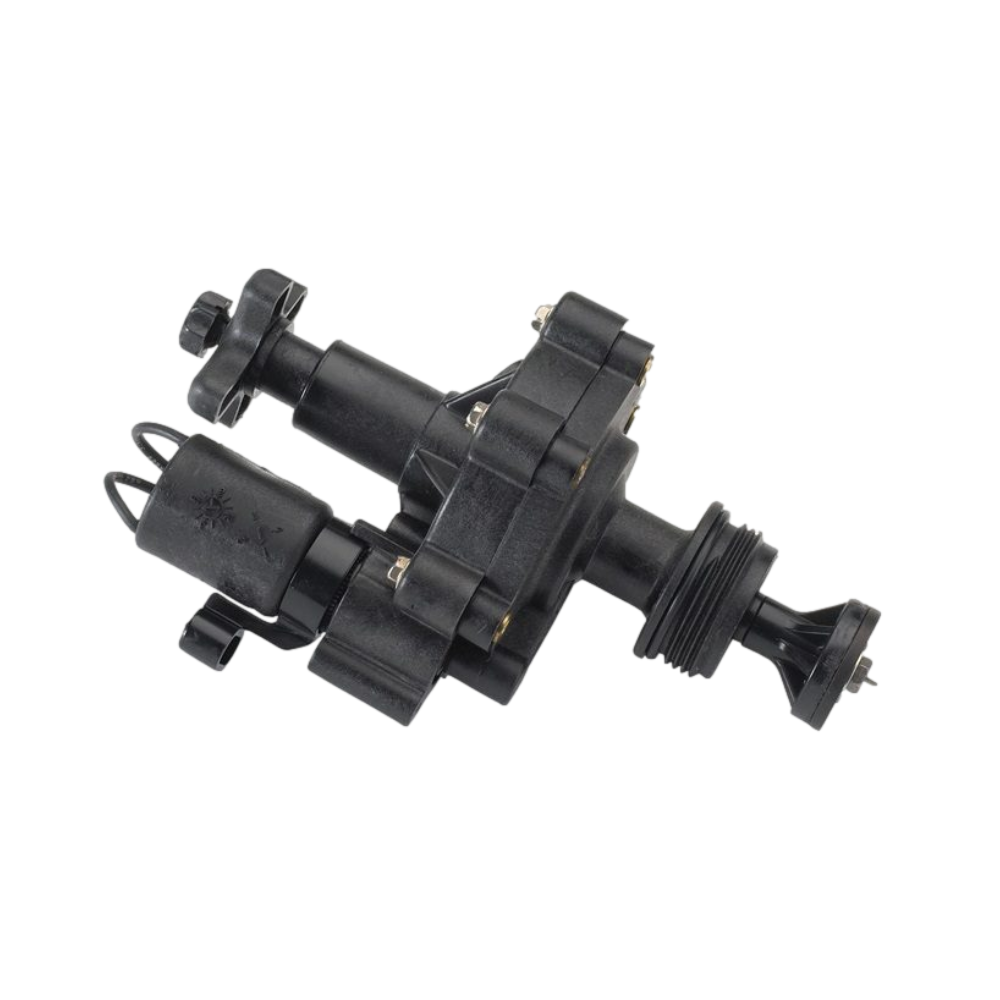

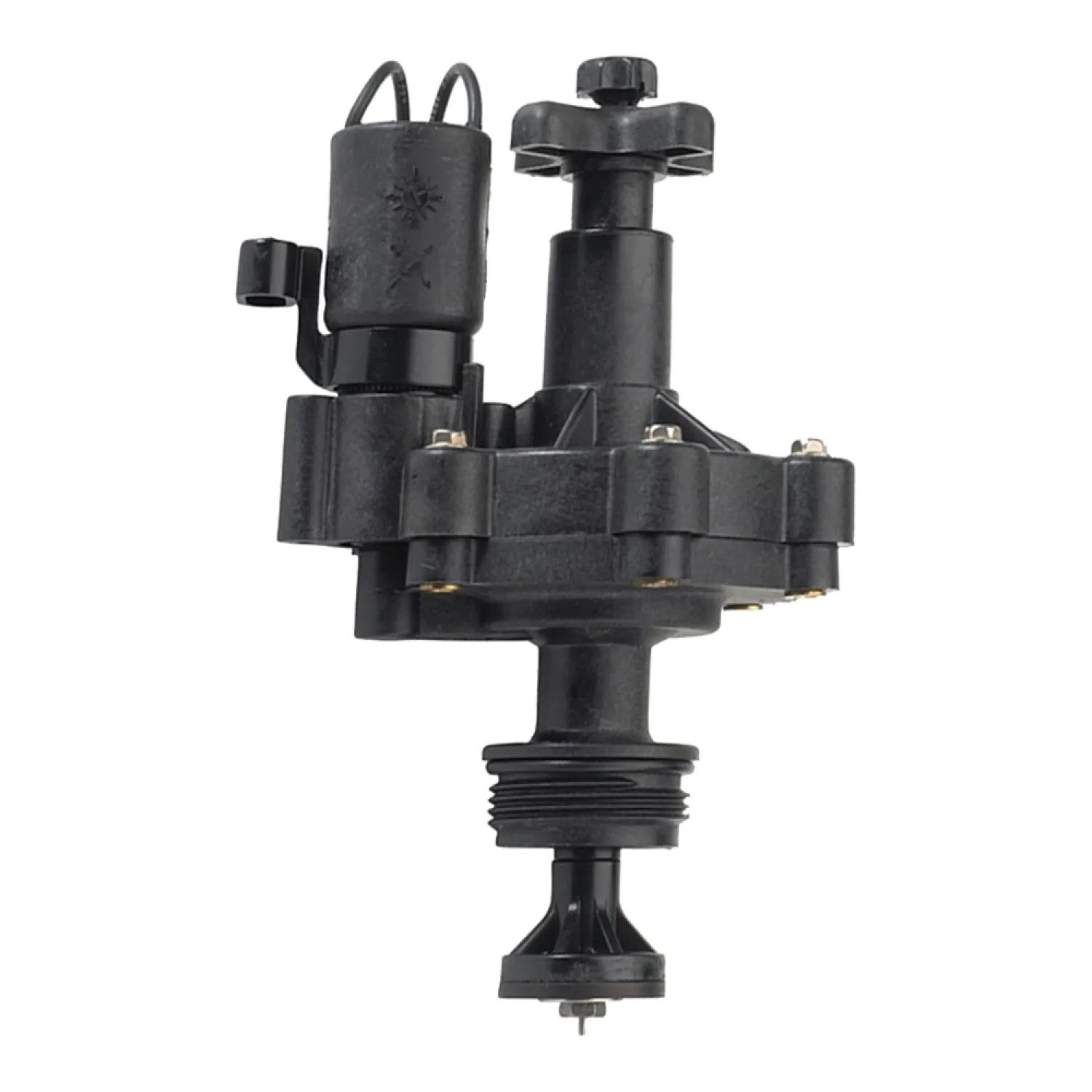

Irritrol 300-.75 Electric Valve Adapter 3/4 in.

Product Description

The Irritrol 300-.75 is an electric valve adapter designed to convert manual valves to electric operation.

• Converts 3/4-inch and 1-inch Champion brass anti-siphon and 1-inch Irritrol manual valves.
• Features internal and external bleed (flush mode).
• Constructed with durable materials for longevity.

Product Highlights

This valve adapter simplifies the conversion process, enhancing efficiency and reliability in irrigation systems.

Product Information

Standard Information

• Type: Valve Adapter
• Installation Location: Outdoor

Technical Specifications

• Converts: 3/4-inch and 1-inch Champion brass anti-siphon valves and 1-inch Irritrol manual valves
• Bleed: Internal and external bleed (flush mode)
• Diaphragm: Rugged, double-beaded nylon-reinforced Buna-N diaphragm
• Construction: Glass-reinforced nylon, stainless steel, and brass
• Holding Current: 0.2 amp
• Holding Volt-Amp: 24 V ac-4.8 VA
• Inrush Current: 0.4 amp
• Inrush Volt-Amp: 24 V ac-9.6 VA
• Solenoid: 24 V ac
• Pressure Rating: 150 PSI
• Amperage: 0.2 Amp
• Voltage: 24V
• Size: 3/4 in.
