Iron Strike h7917 Thermal Activated Blower Assembly 115V

Product Description

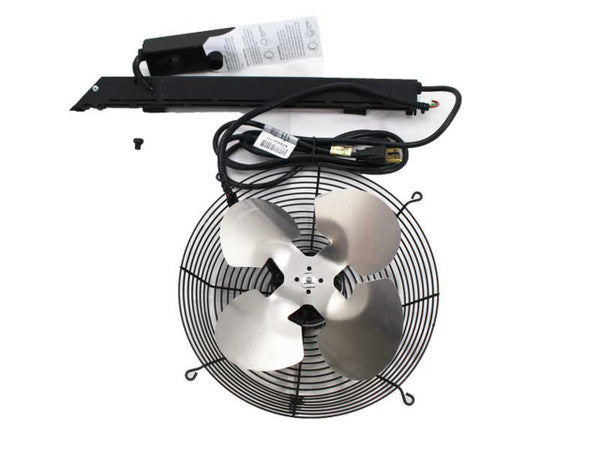

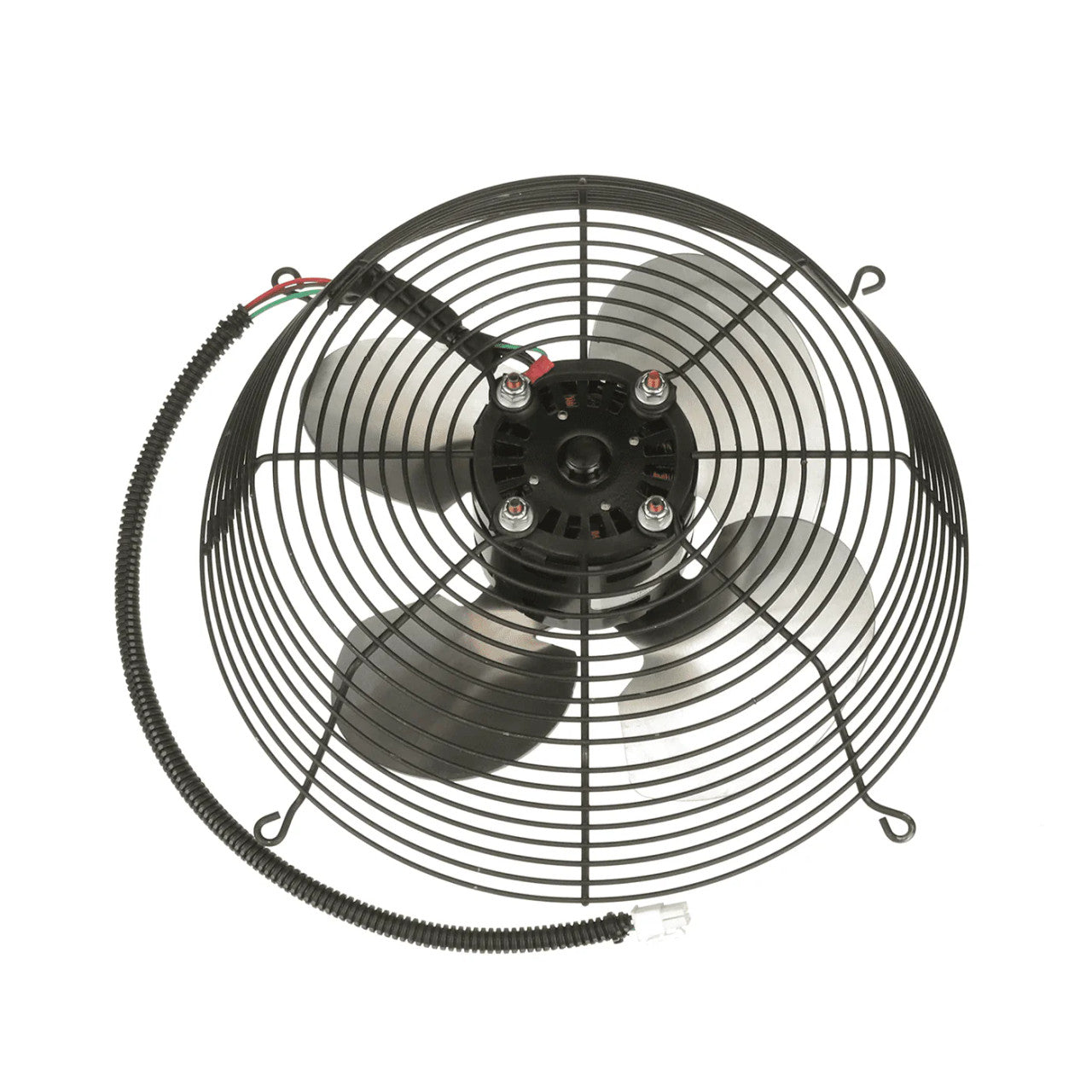

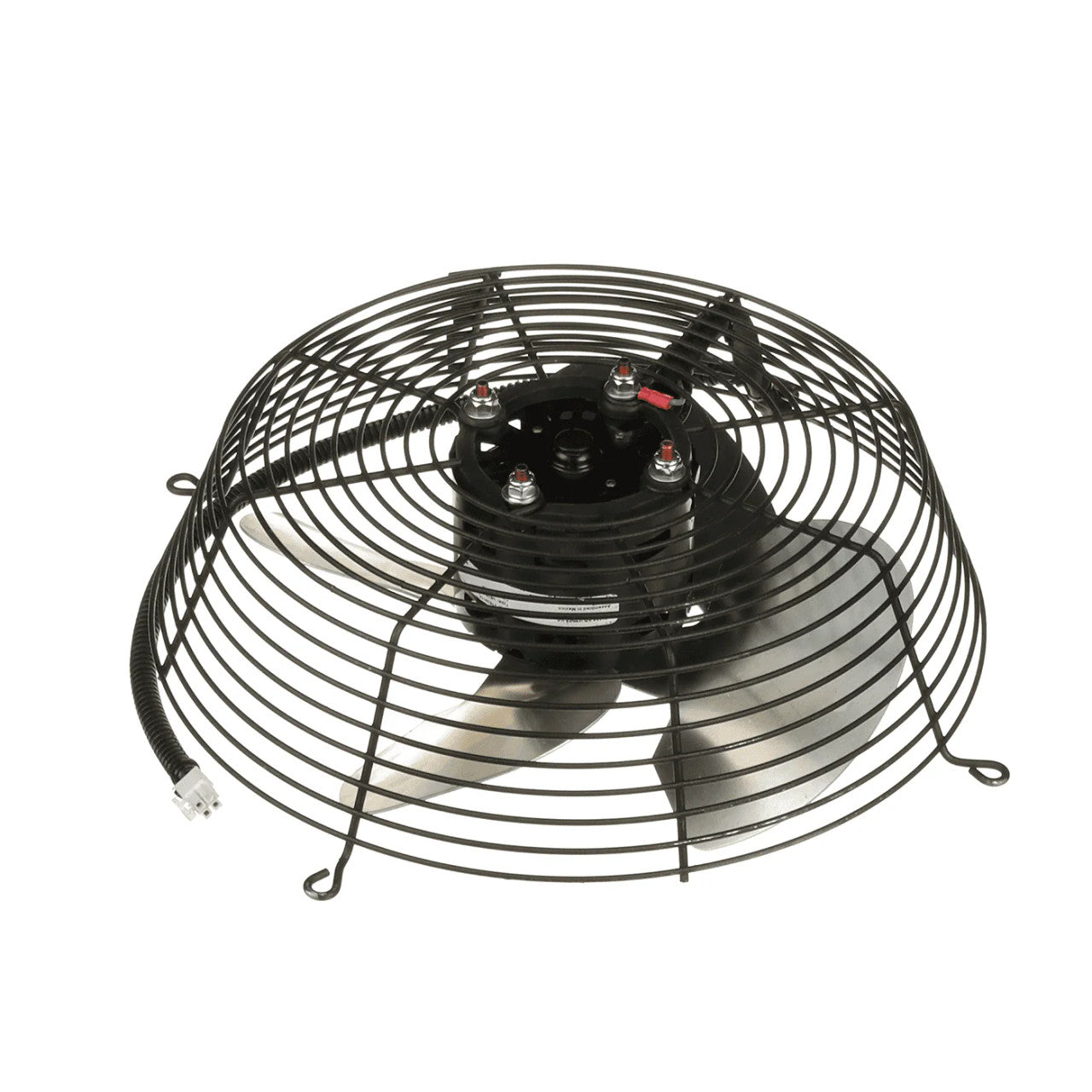

The IRON STRIKE h7917 is a thermally activated blower assembly designed for freestanding wood stoves. The kit includes a rear-mount axial fan, an integrated thermostat, and a speed controller — all in a single assembly. Operating at 115 volts, 60 Hz, and 3000 RPM, the unit draws heat from the stove body to trigger the thermostat, then circulates warm air into the room without requiring manual controls. Licensed hearth professionals and experienced installers handle this type of accessory as part of a stove commissioning or upgrade service.

This blower assembly is intended for use with Lennox and IronStrike freestanding wood stoves as a rear-mounted add-on. The axial fan design is suited for low-clearance mounting at the rear of the stove cabinet. The thermostat-controlled startup means the fan activates only when the stove reaches operating temperature, reducing cold-air draft during warm-up cycles. The variable speed controller allows output to be adjusted based on room conditions and stove output.

Key Features

• Thermally activated thermostat starts and stops the fan automatically based on stove temperature
• Variable speed controller included for manual output adjustment
• Rear-mount axial fan design fits the stove cabinet without major modification
• Operates at 115 volts, 60 Hz for standard residential electrical service
• Rated at 3000 RPM for consistent airflow across the stove heating cycle
• Complete kit includes thermostat, speed controller, and fan assembly

Compatibility

Designed for use with Lennox and IronStrike freestanding wood stoves as a rear-mount blower upgrade.

Installation Notes

Installation should be performed by a qualified hearth or HVAC technician familiar with solid-fuel appliance accessories. Allow the stove to cool completely and disconnect power before mounting or wiring the blower assembly. The unit requires a standard 115-volt grounded outlet; follow all applicable NEC requirements for appliance circuit connections. Do not obstruct the fan intake or exhaust clearances specified in the stove manufacturer documentation.

Technical Specifications

• Voltage: 115 volts
• Frequency: 60 Hz
• Fan Speed: 3000 RPM

Standard Information

• Brand: IRON STRIKE
• Manufacturer Part Number: h7917
