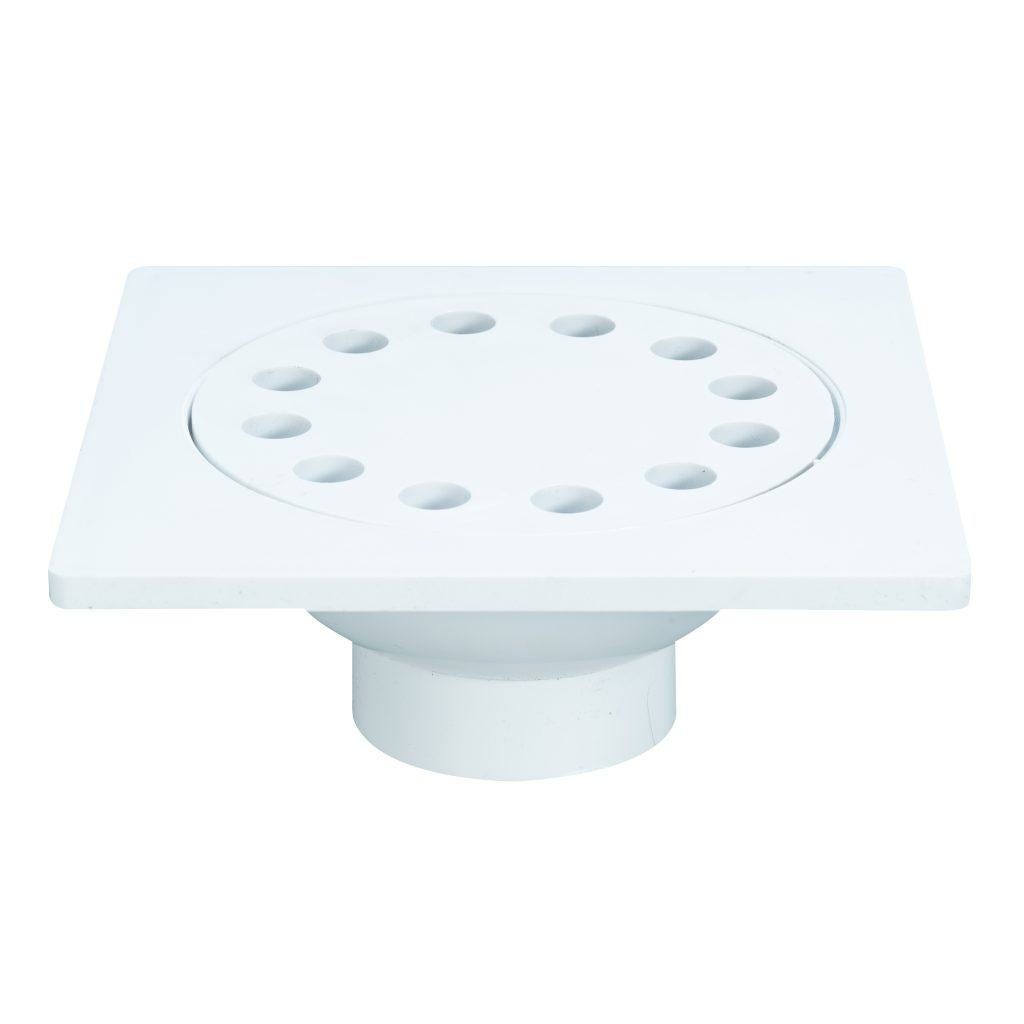

Ips Corporation BTP612 bell trap drain 6 inches x 6 inches

Product Description

The IPS CORPORATION BTP612 bell trap drain is designed for surface water drainage where vapor sealing is required in non-traffic areas. It features an integrated bell trap to prevent sewer gases from venting. Suitable for garages, utility rooms, and patios, it provides a barrier against odor transmission. The drain top measures 6" x 6" with a height of 2.48".

• Features a built-in bell-shaped insert that retains water to provide a passive vapor seal for odor control.
• Dual-outlet configuration allows solvent-weld connection to 1-1/2" Schedule 40 DWV or direct fit into 2" coupling.
• Corrosion-resistant thermoplastic body suitable for indoor or protected outdoor settings.

Product Highlights

Designed for light-duty, non-vehicular load conditions, this bell trap drain is ideal for low-profile installations requiring odor control.

Product Information

Standard Information

• Brand: IPS CORPORATION
• Manufacturer Part Number: BTP612

Technical Specifications

• Item Type: Drains
• Brand: IPS
• Manufacturer: IPS Corporation
• MPN: BTP612
• Sub Type: Bell Trap Drain
• Material: PVC
• Nominal Size: 6 x 6 in
• Shape: Square
• Top Dimensions: 6" x 6"
• Height: 2.48 inches
• Outlet: 1-1/2" solvent-weld hub or fit into 2" DWV coupling
