IPS CORPORATION 85723 WHITE DDOB W/QT 1/2 PEX CON

Product Description

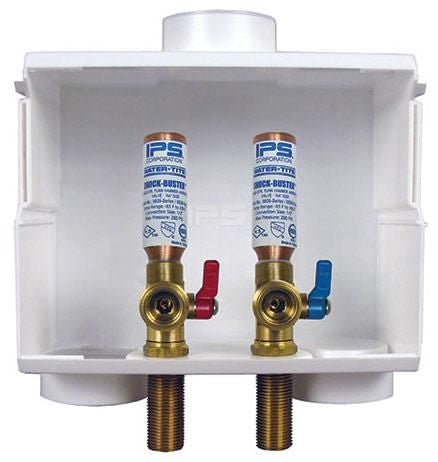

The IPS CORPORATION 85723 is a washing machine outlet box designed for use with PEX connections. This unit features a dual drain system and is suitable for domestic applications.

• Easy to install with a snap-on frame.
• Includes a 1/2 inch PEX quarter turn brass hammer arrester valve.
• Interchangeable face plates for convenience.

Product Highlights

This product simplifies the installation of washing machines by providing a secure outlet box that fits standard plumbing requirements.

Product Information

Standard Information

• Manufacturer: IPS CORPORATION
• UPC: 012181857236

Technical Specifications

• Dimensions: 3-3/8 inches deep
• Box Size: 8-1/4 inches width x 3-3/4 inches depth x 6-1/8 inches height
• Face Plate Size: 10-3/16 inches width x 8-13/16 inches height
• Valve Type: 1/4 turn brass hammer arrester valve
• Installation Standard: ASME A112.18.1, ASSE 1010, UPC
• Contractor Pack Included: Yes
