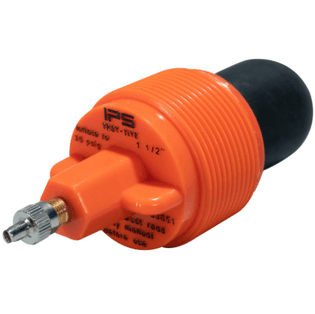

Ips Corporation 83651 1-1/2 Inches Cleanout Pneumatic Test Plug Natural Rubber

Product Description

The IPS Corporation 83651 is a 1-1/2 inches cleanout pneumatic test plug designed for plumbing pipeline testing above the cleanout tee. Built under the Test-Tite product line, this plug is made from a durable natural rubber compound that holds up through repeated field use. Plumbers and plumbing contractors rely on this type of plug to pressure test drain, waste, and vent systems before a job is signed off. It fits cleanout tee openings sized at 1-1/2 inches and accepts pipe diameters ranging from 1.38 inches minimum to 1.63 inches maximum, making it a precise fit for standard 1-1/2 inch pipe configurations. The plug features a molded-in inflation valve, which allows the technician to quickly inflate the plug in place to create a secure, airtight seal inside the pipe. Once inflated, the plug can hold water head pressure up to 30 feet and air pressure up to 13 PSIG, meeting common plumbing code test requirements for low-pressure pipe testing. The recommended inflation pressure is 35 PSIG, which seats the rubber body firmly against the pipe wall and prevents bypass during the test. When the test is complete, deflating the plug allows test water or air to pass freely through the line. The plug then unscrews cleanly from the cleanout tee without tools or damage to the fitting. The natural rubber construction gives this plug flexibility and resilience, allowing it to form a tight seal even in pipes with minor surface variation. Because it is reusable, it reduces material costs on repeat jobs. This plug is well suited for residential and light commercial plumbing rough-in inspections, service calls, and new construction testing where a reliable, code-compliant pneumatic test is required.

• Fits 1-1/2 inches cleanout tee openings with pipe diameter range from 1.38 inches to 1.63 inches
• Molded-in inflation valve inflates to 35 PSIG for a secure, airtight seal during pressure testing
• Reusable natural rubber construction withstands repeated use across multiple plumbing jobs

Product Highlights

The IPS Corporation 83651 pneumatic cleanout test plug provides a fast, reliable way to pressure test 1-1/2 inch plumbing lines above the cleanout tee. Its natural rubber body and molded-in inflation valve make it a durable, reusable choice for professional plumbers.

Product Information

Standard Information

• Brand: IPS CORPORATION
• Manufacturer Part Number: 83651

Technical Specifications

• Cleanout Size: 1-1/2 inches
• Minimum Pipe Diameter: 1.38 inches
• Maximum Pipe Diameter: 1.63 inches
• Inflation Pressure: 35 PSIG
• Maximum Water Head: 30 feet
• Maximum Air Pressure: 13 PSIG
• Material: Natural Rubber
