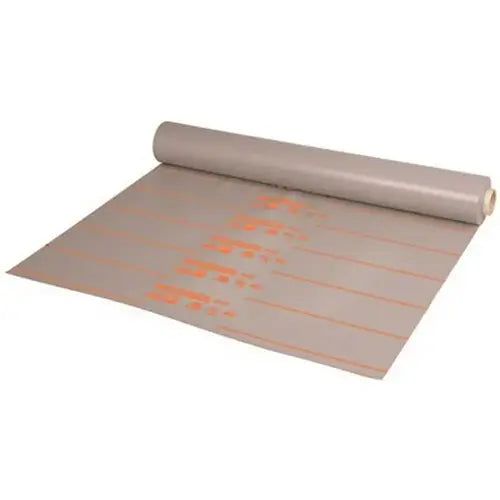

Ips Corporation 83445 Water-tite Pvc Shower Pan Liner 40 Mil Gray 5 Ft X 40 Ft

Product Description

The IPS Corporation 83445 Water-Tite PVC Shower Pan Liner is a professional-grade waterproofing membrane designed for use in tile shower and wet area installations. This liner measures 5 feet wide by 40 feet long and is manufactured from gray PVC at a thickness of 40 mil, giving it the durability and flexibility needed to form a reliable waterproof barrier beneath shower floors. Plumbers, tile setters, and general contractors rely on shower pan liners like this one to prevent water intrusion into subfloor structures, which can cause rot, mold, and costly structural damage over time. The 83445 liner is built to meet ASTM D-4551 standards, which define performance requirements for PVC sheet waterproofing membranes. It also meets FHA and Federal HUD requirements for shower pan installations, making it suitable for residential construction and renovation projects that must pass inspection. One of the key advantages of this liner is that no underlay or additional mounting substrate is required. The liner may be bonded directly to the drain assembly for a positive watertight seal, simplifying the installation process and reducing labor time on the job. The gray PVC material is flexible enough to be shaped and clamped into place around standard shower drain flanges. This liner is sold in a full roll format, providing enough material for multiple shower pan installations or a single large custom shower floor. It is compatible with standard clamping-ring drain systems commonly used in residential and light commercial tile shower builds. Plumbing and tile professionals will find this liner easy to cut, fold, and position in preparation for mortar bed and tile installation.

• 40 mil thick gray PVC construction provides a durable, flexible waterproof membrane for shower pan applications
• No underlay mount required — bonds directly to drain assembly for a positive watertight seal
• Meets ASTM D-4551, FHA, and HUD standards for shower pan waterproofing compliance

Product Highlights

The IPS Corporation 83445 Water-Tite Shower Pan Liner delivers a code-compliant, durable waterproofing solution in a full 5-foot by 40-foot roll, making it a reliable choice for professional plumbing and tile installations that require a dependable subfloor moisture barrier.

Product Information

Standard Information

• Brand: IPS CORPORATION
• Manufacturer Part Number: 83445

Technical Specifications

• Product Line: Water-Tite
• Material: PVC (Polyvinyl Chloride)
• Color: Gray
• Thickness: 40 mil
• Width: 5 feet
• Length: 40 feet
• Roll Coverage: 200 square feet per roll
• Standards Compliance: ASTM D-4551, FHA, HUD
• Application: Shower pan waterproofing membrane
• Drain Compatibility: Standard clamping-ring drain systems
