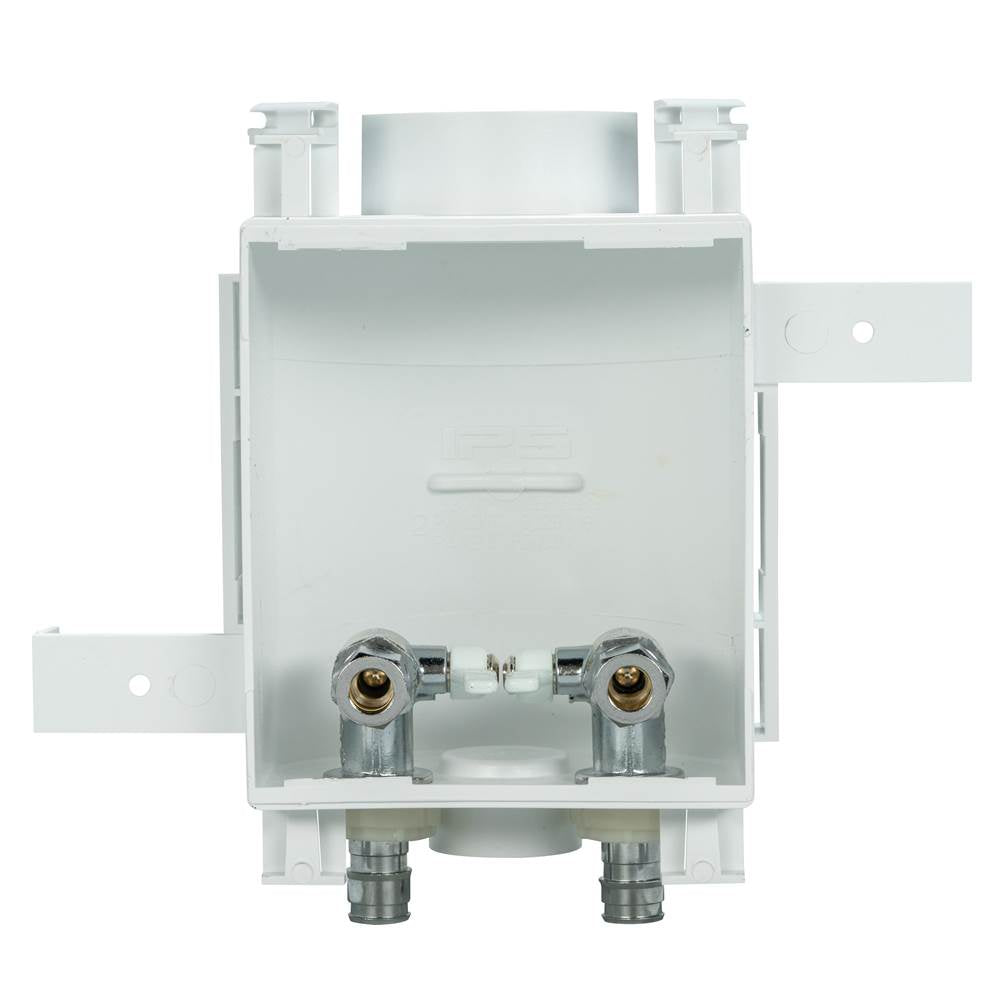

IPS CORPORATION 83095 Water-Tite MultiBox FRAS1211 Fire Rated Angle Stop Outlet Box System With Lead Free Quarter Turn Valve and Nine Valve Knock-Outs 3/8 In Inlet x 1/2 In Outlet

Product Description

The IPS Corporation 83095 Water-Tite MultiBox FRAS1211 is designed for fire-rated applications. This outlet box system features a lead-free quarter-turn valve and includes nine valve knock-outs. It has a 3/8 inch inlet and a 1/2 inch outlet, making it suitable for use with F1960 PEX outlets. Constructed from durable PVC, the dimensions measure six and a half inches wide, three point seven five five inches deep, and seven inches high.

• Mounting flanges simplify installation without the need for clips.
• Includes two drain knock-outs for compatibility with standard two inch washing machine drains.
• Features an anti-rotational valve design for improved reliability.

Product Highlights

This outlet box system provides an effective solution for plumbing needs, especially in fire-rated environments.

Product Information

Standard Information

• Brand: IPS Corporation
• MPN: 83095

Technical Specifications

• Series: FRAS1211
• Inlet Size: 3/8 inch
• Outlet Size: 1/2 inch
• Outlet Type: F1960 PEX
• Material: PVC
• Dimensions: 6-1/2 inches W x 3.755 inches D x 7 inches H
• Domestic/Import: Domestic
• Type: Fire Rated
