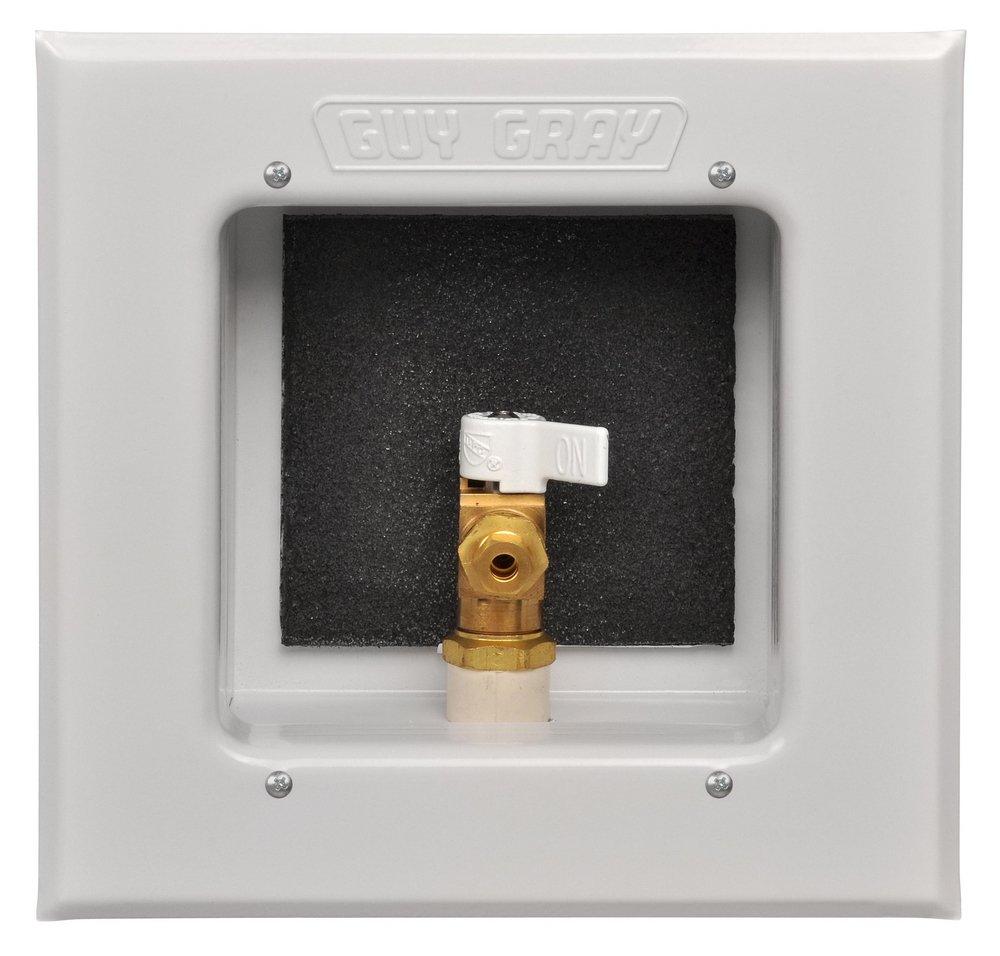

IPS Corporation 82390 5-7/8 in x 5-3/8 in x 2-1/8 in Ice Maker CPVC Supply Box

Product Description

The IPS Corporation 82390 is a fire-rated ice maker outlet box made from heavy-duty materials for reliable performance. Designed for easy installation, this supply box is suitable for both residential and commercial use.

• Designed for quick installation with no loose parts.
• Connection options include 1/2-inch MIP/sweat and CPVC.
• Fire-rated and conforms to NSF 61-G requirements.

Product Highlights

This ice maker supply box features intumescent pads for enhanced safety and comes with a valve that is lead-free.

Product Information

Standard Information

• Brand: IPS Corporation
• MPN: 82390

Technical Specifications

• Dimensions: 5-7/8 inches (height) x 5-3/8 inches (width) x 2-1/8 inches (depth)
• Material: Steel with white powder coating
• Series: FR-12
• Compliance: ETL certified, NSF 61-G
• Installation: Box does not require assembly and fastens easily to studs
• Fire Rating: 1-hour and 2-hour ratings available
• Connection Type: 1/2-inch sweat valves available
