IPS CORPORATION 82066 Washing Machine Outlet Box With Quarter Turn Valves 1/2 in CPVC Connection

Product Description

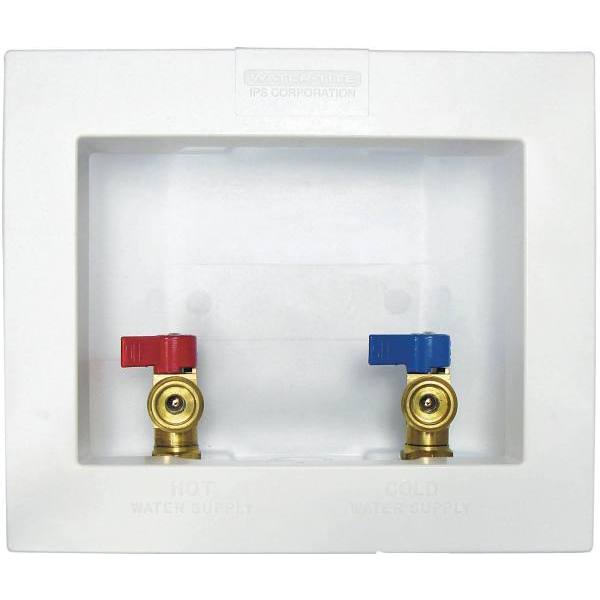

The IPS CORPORATION 82066 washing machine outlet box is designed for easy installation with versatile valve-mounting options. This unit has a single-piece design that simplifies setup and minimizes labor for both contractors and homeowners. It comes with pre-installed quarter-turn brass valves and can be inverted for top-mounted valves with a center drain.

• Designed for quick installation.
• Includes a raised drip guard to manage leaks.
• Oversized knockouts that prevent falling into the drain.

Product Highlights

This outlet box includes forward-mounted valves for straightforward access and a snap-on faceplate, making it suitable for both residential and commercial washing machine installations.

Product Information

Standard Information

• Connection Type: CPVC
• Material: Brass

Technical Specifications

• Size: 1/2 in
• Package Quantity: 1
• Applicable Standard: ASME A112.18.1, UPC
• Box Size: 8-1/4 Inch Width x 3-3/4 Inch Depth x 6-1/8 Inch Height
• Faceplate Size: 10-3/16 Inch Width x 8-13/16 Inch Height
• Inclusions/Features: Extended Mounting Flange
• Pipe Connection: 1/2 Inch CPVC
• Drain Placement: Center Drain
