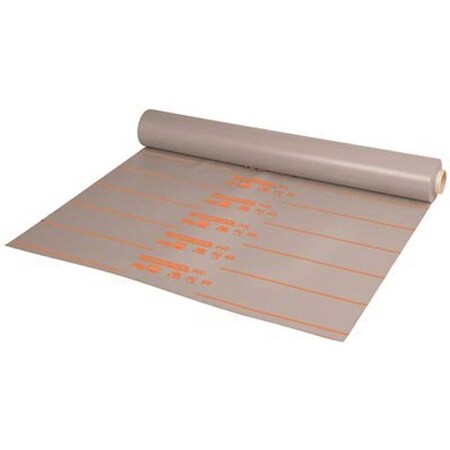

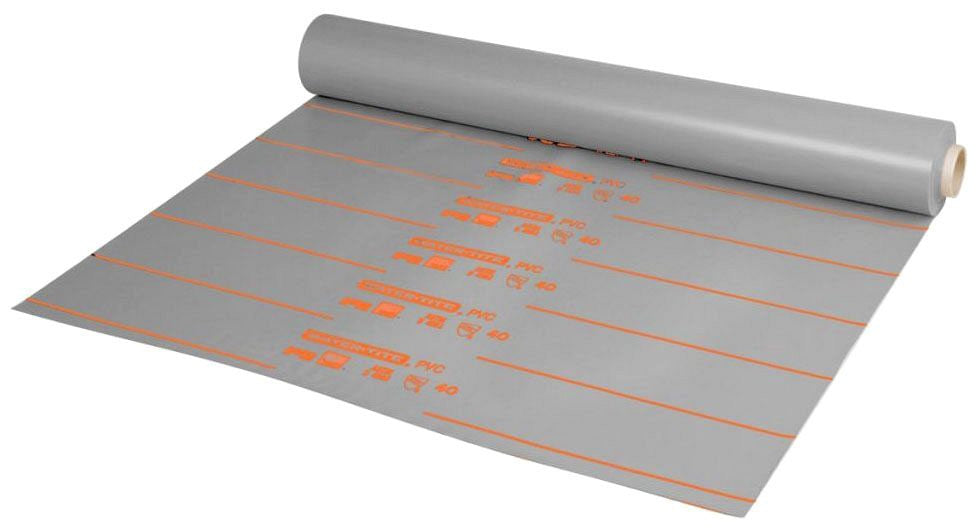

Ips 83440 Water-Tite PVC Shower Pan Liner 4 ft x 50 ft 40 mil

Product Description

Ips 83440 is a Water-Tite PVC shower pan liner measuring 4 ft by 50 ft with 40 mil thickness, designed to protect subfloors in tile showers and other concealed waterproofing applications. The liner provides approximately 200 sq-ft coverage, includes lines every 6 inches for accurate measuring and cutting, and can be glued directly to the drain for a positive seal without an underlay. It meets ASTM D-4551 and FHA and HUD shower pan requirements.

• 40 mil PVC membrane; 4 ft x 50 ft roll providing ~200 sq-ft coverage
• Marked with lines every 6 inches for accurate measuring and cutting
• May be glued directly to the drain for a positive seal; no underlay mount required; meets ASTM D-4551 and FHA/HUD requirements

Product Highlights

40 mil Water-Tite PVC shower pan liner, 4 ft x 50 ft roll, lines every 6 in, glue-to-drain installation, meets ASTM D-4551 and FHA/HUD standards

Product Information

Standard Information

• Brand: IPS
• Manufacturer Part Number: 83440
• Country of Origin: United States

Technical Specifications

• Brand: IPS
• Manufacturer Part Number: 83440
• Product Name: Water-Tite PVC Shower Pan Liner
• Model Number: P445
• Product Code / Internal: 6022
• Dimensions: 4 ft x 50 ft (48 in x 600 in)
• Coverage Area: 200 sq-ft (approx.)
• Thickness: 40 mil (0.040 in)
• Material: PVC
• Installation: May be glued directly to the drain; no underlay mount required
• Markings: Lines every 6 inches for measuring and cutting
• Standards: Meets ASTM D-4551; Meets FHA & HUD requirements for shower pans
• Color: Gray
• UPC: 12181834404
• Country of Origin: United States
• Weight: 60 lbs
• Collection: WATER-TITE
• Product Category: Plumbing
• UNSPSC Code: 30181500
