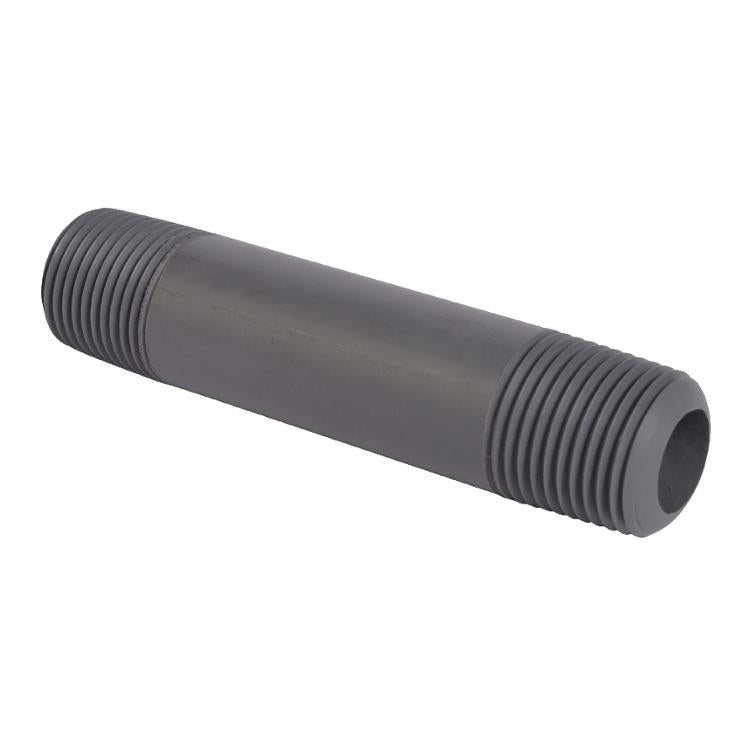

Ipex 9887040 Cpvc Schedule 80 Nipple 2 in X 4 in

Product Description

The IPEX 9887040 is a Schedule 80 CPVC threaded nipple designed to connect two female-threaded (FPT) fittings in pressurized piping systems. Measuring 2 inches in diameter and 4 inches in length, this nipple is manufactured from Xirtec CPVC material rated for a maximum service temperature of 200 degrees F under continuous pressure, with occasional exposure to boiling water up to 212 degrees F. The design stress of CPVC is 2,000 psi at 73 degrees F. Licensed plumbers and pipefitters install this fitting in hot and cold water distribution, chemical handling, and industrial process piping where corrosion resistance and thermal performance are required.

This nipple is suited for residential and commercial plumbing systems where Schedule 80 wall thickness is specified for added pressure capacity. It is used in applications involving hot water service, industrial fluid handling, and any installation where metallic pipe corrosion is a concern. The Xirtec CPVC material is engineered to resist rust, pitting, scaling, and corrosion on both interior and exterior surfaces, making it a long-term, low-maintenance option in demanding environments.

Key Features

• Schedule 80 CPVC construction provides increased wall thickness for higher pressure ratings compared to Schedule 40
• Rated to 200 degrees F continuous service temperature under pressure, with intermittent tolerance to 212 degrees F
• 2,000 psi design stress at 73 degrees F per CPVC material standard
• Threaded on both ends for direct connection to FPT fittings without additional adapters
• Corrosion-resistant interior and exterior surfaces — will not rust, pit, scale, or corrode
• Xirtec CPVC manufacturing process requires less than half the energy of equivalent carbon steel or steel alloy production

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 CPVC piping systems using standard NPT female-threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASTM standards for CPVC piping. Shut off and depressurize the system completely before cutting into any existing line or removing fittings. Use CPVC-compatible thread sealant or tape rated for thermoplastic fittings — do not use petroleum-based compounds, which can degrade CPVC. Avoid over-tightening threaded connections, as CPVC is not rated for the same torque loads as metal fittings.

Technical Specifications

• Material: CPVC (Xirtec)
• Schedule: Schedule 80
• Pipe Diameter: 2 inches
• Nipple Length: 4 inches
• Connection Type: Threaded Both Ends (NPT)
• Maximum Service Temperature: 200 degrees F (93 degrees C) continuous under pressure
• Intermittent Temperature Rating: 212 degrees F (100 degrees C)
• Design Stress: 2,000 psi at 73 degrees F (23 degrees C)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9887040
