Ipex 9861175 Cpvc Schedule 80 Nipple 1-1/4 X 6 Inches

Product Description

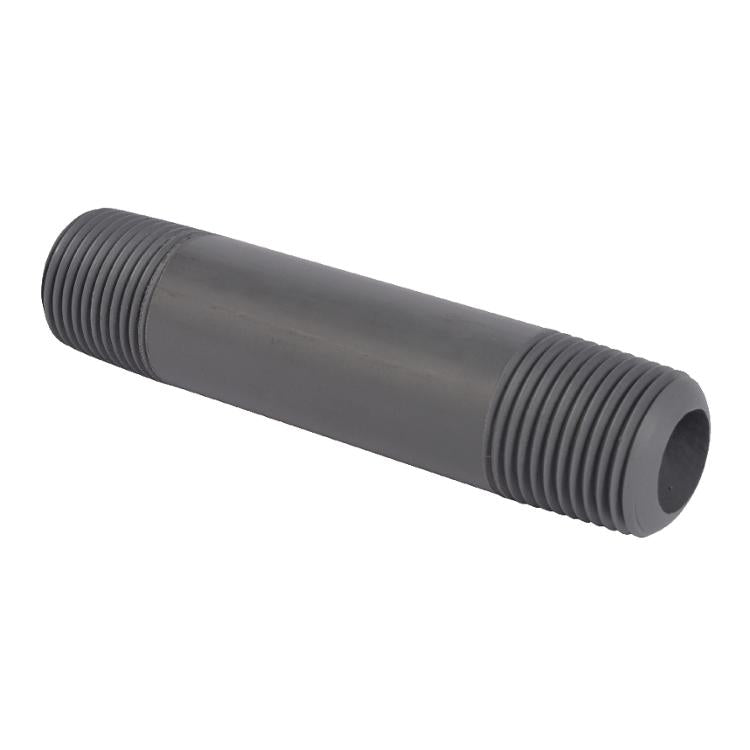

The IPEX 9861175 is a Schedule 80 CPVC threaded nipple designed to connect two female-threaded (FPT) fittings in industrial and commercial piping systems. Sized at 1-1/4 inches by 6 inches, it is manufactured from Xirtec CPVC material rated for a maximum service temperature of 200 degrees F under continuous pressure, with occasional tolerance for boiling water at 212 degrees F. The base material carries a design stress rating of 2,000 psi at 73 degrees F. Plumbers and pipefitters install this nipple where corrosion resistance and thermal performance are required in chemical, hot-water, or industrial service lines.

This nipple is suited for residential and commercial hot-water distribution, chemical processing lines, and industrial fluid-handling systems where metal corrosion is a concern. The Schedule 80 wall thickness provides added pressure capacity compared to Schedule 40, making it a preferred choice in higher-demand applications. Both ends are threaded for direct connection to female-threaded valves, unions, or fittings without additional adapters.

Key Features

• Rated to 200 degrees F continuous service temperature under pressure
• Tolerates occasional exposure to boiling water at 212 degrees F
• Design stress of 2,000 psi at 73 degrees F for reliable pressure service
• CPVC material resists rust, pitting, scaling, and corrosion on interior and exterior surfaces
• Schedule 80 wall construction for enhanced pressure capacity
• Both ends threaded (NPT) for straightforward FPT-to-FPT connection

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 CPVC threaded piping systems using 1-1/4 inch nominal pipe size.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASTM standards for CPVC piping systems. Shut off and depressurize the line before removing any existing fittings. Use a CPVC-rated thread sealant or PTFE tape rated for CPVC compatibility — do not use petroleum-based compounds, which can degrade CPVC. Do not over-torque threaded connections, as Schedule 80 CPVC can crack under excessive mechanical stress.

Technical Specifications

• Material: CPVC (Xirtec)
• Schedule: Schedule 80
• Nominal Pipe Size: 1-1/4 inches
• Length: 6 inches
• Maximum Service Temperature: 200 degrees F (93 degrees C) under pressure
• Occasional Peak Temperature: 212 degrees F (100 degrees C)
• Design Stress: 2,000 psi at 73 degrees F
• End Connection: Threaded both ends (NPT)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9861175
