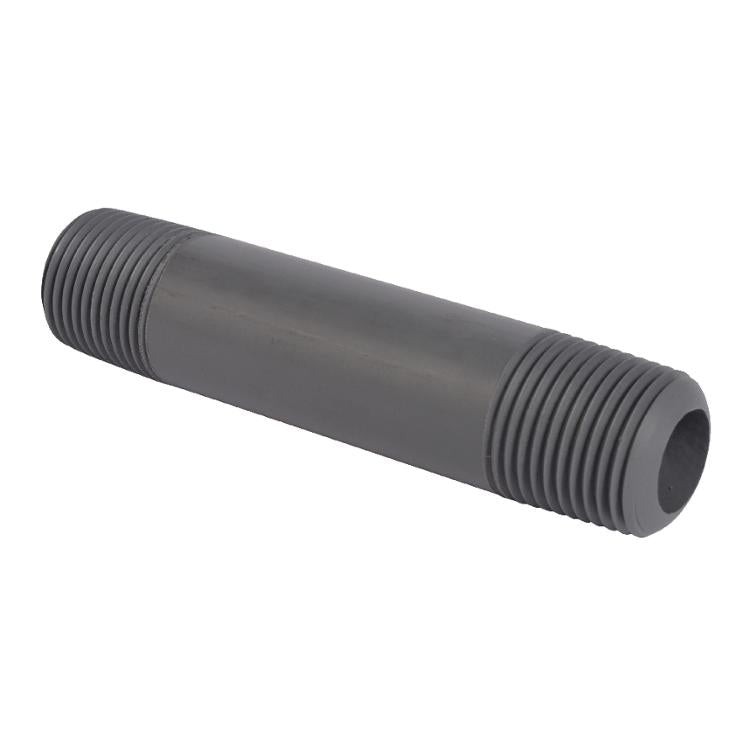

Ipex 9861173 Cpvc Schedule 80 Nipple 1-1/4 X 4 in

Product Description

The IPEX 9861173 is a Schedule 80 CPVC threaded nipple designed to connect two female threaded (FPT) fittings in pressure piping systems. Manufactured from chlorinated polyvinyl chloride (CPVC), this nipple carries a design stress rating of 2,000 psi at 73 degrees F and a maximum service temperature of 200 degrees F under continuous pressure. Short-term exposure to boiling water at 212 degrees F is also tolerated. The 1-1/4-inch diameter and 4-inch length make it a standard close nipple for residential and light commercial plumbing, industrial process, and hot and cold water distribution systems. Plumbers and pipefitters are the primary installers.

This nipple is suited for hot and cold water supply lines, industrial fluid handling, and chemical distribution applications where metal corrosion is a concern. CPVC Schedule 80 fittings and pipe are common in commercial plumbing, fire suppression, and industrial process lines that require higher pressure ratings than Schedule 40. The male NPT threads on both ends accept standard female threaded couplings, adapters, valves, and other FPT fittings. It is appropriate for above-ground and in-wall installations where CPVC is code-approved.

Key Features

• Schedule 80 CPVC construction rated to 2,000 psi design stress at 73 degrees F
• Maximum continuous service temperature of 200 degrees F under pressure
• Tolerates occasional exposure to boiling water at 212 degrees F
• Male NPT threads on both ends connect two FPT fittings without additional adapters
• Will not rust, pit, scale, or corrode on interior or exterior surfaces
• Lower embodied energy than equivalent carbon steel or steel alloy pipe sizes

Compatibility

Designed as an OEM-style replacement or standard fitting for Schedule 80 CPVC piping systems using 1-1/4-inch nominal pipe size with NPT-threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASTM standards for CPVC pressure piping. Shut off and depressurize the supply line and allow it to cool before removing any existing fittings. Use CPVC-compatible thread sealant or PTFE tape rated for plastic pipe threads — do not use sealants formulated for metal pipe only, as they may degrade CPVC. Hand-tighten first, then snug with a strap wrench; avoid excessive force, which can crack threaded CPVC fittings.

Technical Specifications

• Material: CPVC (Chlorinated Polyvinyl Chloride)
• Schedule: Schedule 80
• Nominal Pipe Size: 1-1/4 inches
• Length: 4 inches
• Thread Type: Male NPT both ends
• Design Stress: 2,000 psi at 73 degrees F
• Maximum Service Temperature: 200 degrees F under pressure
• Intermittent Temperature Limit: 212 degrees F

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9861173
