Ipex 9854060 Cpvc Schedule 80 Van Stone Flange 6 in

Product Description

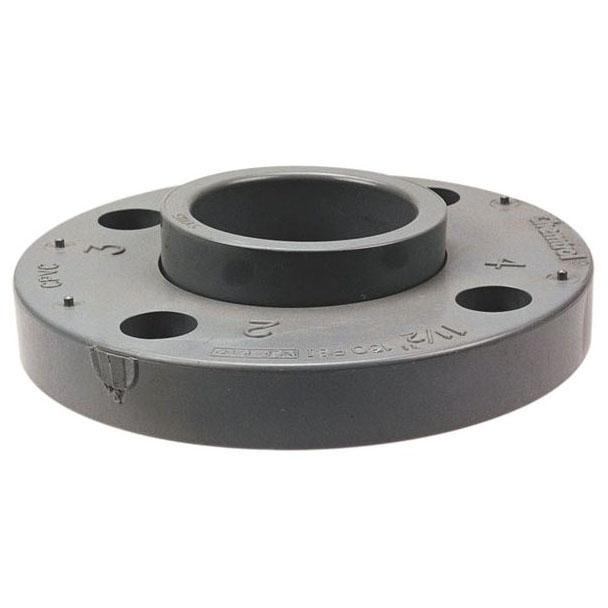

The IPEX 9854060 is a 6-inch CPVC Schedule 80 Van Stone flange fitting designed for demanding industrial and commercial piping systems. It is a two-piece assembly consisting of a connector hub and a loose CPVC flange ring, allowing the ring to rotate freely for easy bolt-hole alignment during installation. The fitting is injection-molded from Corzan CPVC, which maintains mechanical strength across a wide temperature range up to 210 degrees F and carries a pressure rating of 2000 psi at 73 degrees F. Licensed plumbers and industrial pipefitters install this fitting in systems where corrosion resistance and chemical compatibility are required.

This flange is suited for a range of industrial and commercial applications including chemical processing, industrial plating, chilled water distribution, deionized water lines, chemical drainage, and wastewater treatment systems. The female socket end connection accepts Schedule 80 CPVC pipe. Its light gray finish and non-metallic CPVC construction make it appropriate for environments where metal flanges would corrode, scale, or pit. Packaging is 5 units per carton.

Key Features

• Two-piece Van Stone design with rotating flange ring for easy bolt-hole alignment
• Rated at 2000 psi at 73 degrees F with a maximum temperature rating of 210 degrees F
• Injection-molded Corzan CPVC construction resists rust, scaling, pitting, and corrosion
• Female socket end connection compatible with Schedule 80 CPVC pipe
• Meets ANSI/NSF 14/61 and ANSI B16.5 standards
• Conforms to ASTM F1970 material specification

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 CPVC piping systems in industrial and commercial applications requiring corrosion-resistant flanged connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified industrial pipefitter familiar with solvent-cement joining of thermoplastic pipe. Depressurize and drain the piping system fully before cutting into any existing line. Follow ASTM F1970 and applicable local codes for solvent cementing procedure, cure times, and flange bolt torque patterns. Do not over-torque flange bolts, as excessive force can crack the CPVC flange ring.

Technical Specifications

• Nominal Pipe Size: 6 inches
• Flange Outside Diameter: 10.97 inches
• Thickness: 1.28 inches
• Schedule: 80
• End Connection: Female Socket
• Fitting Type: Two-Piece Van Stone
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Material: CPVC
• Material Specification: ASTM F1970
• Manufacturing Process: Injection Molded
• Finish: Light Gray
• Applicable Standards: ANSI/NSF 14/61, ANSI B16.5
• Weight: 4.88 pounds
• Packaging Quantity: 5 per carton
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9854060
